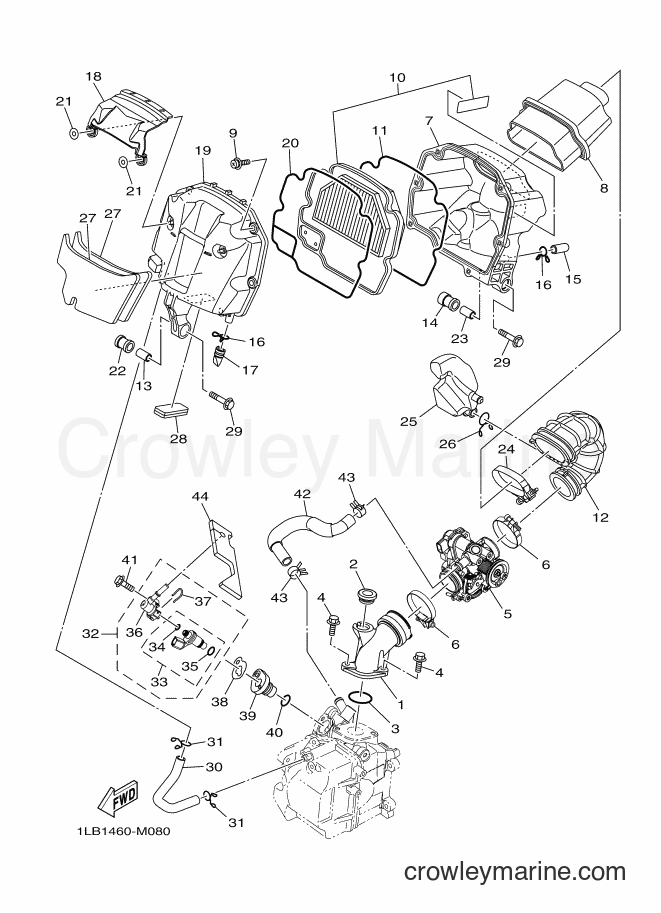

2013 Scooter AL125FC - AL125FC (1LB2) [010] INTAKE diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors AL125FC (1LB2) [010] - INTAKE
Change View:
1
Required: 1
MANIFOLD
Price unavailable
2
Required: 1
GROMMET
Price unavailable
O-Ring
3
Yamaha Motors
O-Ring93210-30611-00
Required: 1
O-RING
Cross Ship
Leaves in 2-5 days
$14.49
$12.32
You save $2.17
More details
Flange Bolt
4
Yamaha Motors
Flange Bolt95022-06020-00
Required: 2
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$3.90
$3.32
You save $0.58
More details
5
Required: 1
THROTTLE BODY ASSY
Price unavailable
6
Required: 2
HOSE CLAMP ASSY
Price unavailable
7
Required: 1
CASE, AIR CLEANER 1
Price unavailable
8
Required: 1
CAP, CLEANER CASE 2
Price unavailable
PAN HEAD SCREW - W/WASHER
9
Yamaha Motors
PAN HEAD SCREW - W/WASHER97602-05320-00
Required: 6
SCREW, PAN HEAD WITH WASHER
Cross Ship
Leaves in 2-5 days
$0.70
$0.60
You save $0.10
More details
10
Required: 1
AIR CLEANER ELEMENT ASSY
Price unavailable
11
Required: 1
SEAL
Price unavailable
12
Required: 1
JOINT, AIR CLEANER 1
Price unavailable
13
Required: 1
COLLAR
Price unavailable
14
Required: 1
GROMMET
Price unavailable
15
Required: 1
PIPE, DRAIN
Price unavailable
16
Required: 2
CLIP
Price unavailable
17
Required: 1
PIPE, DRAIN 2
Price unavailable
18
Required: 1
COVER 1
Price unavailable
19
Required: 1
CAP, CLEANER CASE 1
Price unavailable
20
Required: 1
SEAL
Price unavailable
22
Required: 1
GROMMET
Price unavailable
23
Required: 1
COLLAR
Price unavailable
24
Required: 1
BAND
Price unavailable
25
Required: 1
RESONATOR
Price unavailable
26
Required: 1
CLIP
Price unavailable
27
Required: 2
DAMPER
Price unavailable
28
Required: 1
DAMPER 1
Price unavailable
Flange Bolt
29
Yamaha Motors
Flange Bolt95812-06035-00
Required: 2
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$5.49
$4.67
You save $0.82
More details
30
Required: 1
PIPE, BREATHER 1
Price unavailable
Clip
31
Yamaha Motors
Clip90467-11825-00
Required: 2
CLIP
Cross Ship
Leaves in 2-5 days
$0.80
$0.68
You save $0.12
More details
32
Required: 1
INJECTOR ASSY
Price unavailable
33
Required: 1
. INJECTOR
Price unavailable
O-Ring
34
Yamaha Motors
O-Ring54P-E4147-00-00
Required: 1
. . O-RING
Cross Ship
Leaves in 2-5 days
$5.49
$4.67
You save $0.82
More details
O-Ring
35
Yamaha Motors
O-Ring5CA-E4147-00-00
Required: 1
. . O-RING
Cross Ship
Leaves in 2-5 days
$6.99
$5.94
You save $1.05
More details
36
Required: 1
. PIPE
Price unavailable
Clip
37
Yamaha Motors
Clip54P-E4137-00-00
Required: 1
. CLIP
Cross Ship
Leaves in 2-5 days
$4.95
$4.21
You save $0.74
More details
38
Required: 1
GASKET
Price unavailable
39
Required: 1
ADAPTER
Price unavailable
40
Required: 1
O-RING
Price unavailable
Flange Bolt
41
Yamaha Motors
Flange Bolt95812-06030-00
Required: 1
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$2.15
$1.83
You save $0.32
More details
42
Required: 1
HOSE, AIR
Price unavailable
43
Required: 2
CLIP
Price unavailable
44
Required: 1
DAMPER 2
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
