2013 Scooter AL125FC - AL125FC (1LB2) [010] ELECTRICAL 1 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

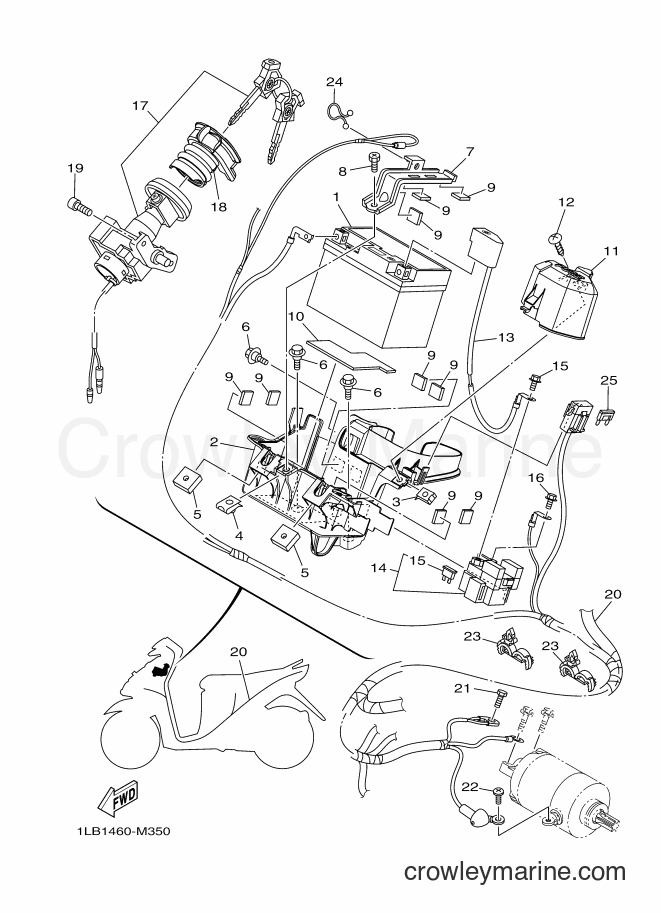

Yamaha Motors AL125FC (1LB2) [010] - ELECTRICAL 1
Change View:
1
Required: 1
BATTERY ASSY (YTZ5S MF YUASA)
Price unavailable
2
Required: 1
BOX, BATTERY 1
Price unavailable
4
Required: 1
NUT, SPRING
Price unavailable
5
Required: 2
NUT, SQUARE
Price unavailable
BOLT
6
Yamaha Motors
BOLT90109-06887-00
Required: 3
BOLT
Cross Ship
Leaves in 2-5 days
$2.00
$1.70
You save $0.30
More details
7
Required: 1
PLATE, BATTERY FITTING
Price unavailable
8
Required: 1
SCREW, HEXAGON
Price unavailable
9
Required: 9
DAMPER, PLATE
Price unavailable
10
Required: 1
DAMPER
Price unavailable
11
Required: 1
COVER, CAP
Price unavailable
Truss Screw
12
Yamaha Motors
Truss Screw97707-50014-00
Required: 1
SCREW, TRUSS HEAD TAPPING
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
13
Required: 1
WIRE, PLUS LEAD
Price unavailable
14
Required: 1
STARTER RELAY ASSY
Price unavailable
15
Required: 2
. FUSE (15A)
Price unavailable
17
Required: 1
MAIN SWITCH COMP.
Price unavailable
18
Required: 1
COVER, MAIN SWITCH
Price unavailable
BOLT
19
Yamaha Motors
BOLT91312-06014-00
Required: 2
BOLT
Cross Ship
Leaves in 2-5 days
$5.49
$4.67
You save $0.82
More details
20
Required: 1
WIRE HARNESS ASSY
Price unavailable
97013-06012-00
21
Yamaha Motors
97013-06012-0097003-06012-00
Required: 1
BOLT
Supersedes: 97002-06012-00
Cross Ship
Leaves in 2-5 days
$2.00
$1.70
You save $0.30
More details
Hexagon Socket Bolt
22
Yamaha Motors
Hexagon Socket Bolt91312-05008-00
Required: 1
BOLT
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
Clamp
23
Yamaha Motors
Clamp90464-18246-00
Required: 2
CLAMP
Cross Ship
Leaves in 2-5 days
$2.44
$2.07
You save $0.37
More details
24
Required: 1
CLAMP
Price unavailable
Fuse (10A)
25
Yamaha Motors
Fuse (10A)67F-82151-40-00
Required: 1
FUSE (10A)
Supersedes: 1LB-H2151-00-00
Cross Ship
Leaves in 2-5 days
$7.10
$6.03
You save $1.07
More details
