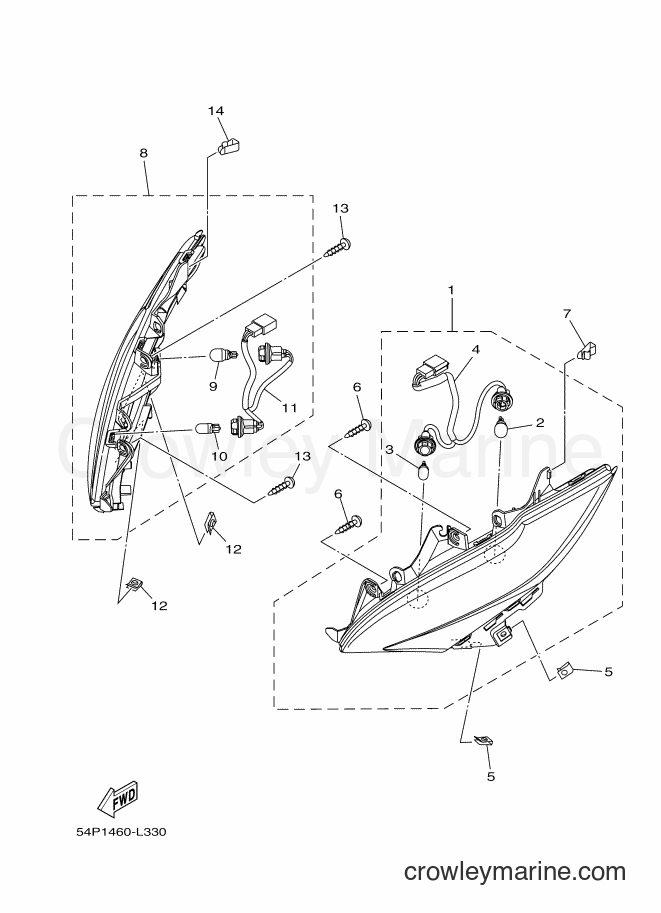

2013 Scooter AL115FC - AL115FC (54P4) [010] FLASHER LIGHT diagram
![Yamaha Motors AL115FC (54P4) [010] - FLASHER LIGHT](https://cdn.crowleymarine.com/yamaha/y1xmTq7D.png)
1
Required: 1
FRONT FLASHER LIGHT ASSY 1
Price unavailable
2
Required: 1
. BULB (12V-10W) AMBER
Price unavailable
3
Required: 1
. BULB (12V-3.4W)
Price unavailable
4
Required: 1
. CORD COMP. 1
Price unavailable
5
Yamaha Motors
Spring Nut90183-05042-00
Required: 2
NUT, SPRING
Supersedes: 90183-05807-00
In stock
Only 1 remaining
$0.85
You save $0.15
6
Yamaha Motors
Truss Head Tapping Screw97707-50016-00
Required: 2
SCREW, TRUSS HEAD TAPPING
In stock
Only 4 remaining
$1.57
You save $0.28
7
Required: 1
CLIP
Price unavailable
8
Required: 1
FRONT FLASHER LIGHT ASSY 2
Price unavailable
9
Required: 1
. BULB (12V-10W) AMBER
Price unavailable
10
Required: 1
. BULB (12V-3.4W)
Price unavailable
11
Required: 1
. CORD COMP. 2
Price unavailable
12
Yamaha Motors
Spring Nut90183-05042-00
Required: 2
NUT, SPRING
Supersedes: 90183-05807-00
In stock
Only 1 remaining
$0.85
You save $0.15
13
Yamaha Motors
Truss Head Tapping Screw97707-50016-00
Required: 2
SCREW, TRUSS HEAD TAPPING
In stock
Only 4 remaining
$1.57
You save $0.28
14
Required: 1
CLIP
Price unavailable
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
