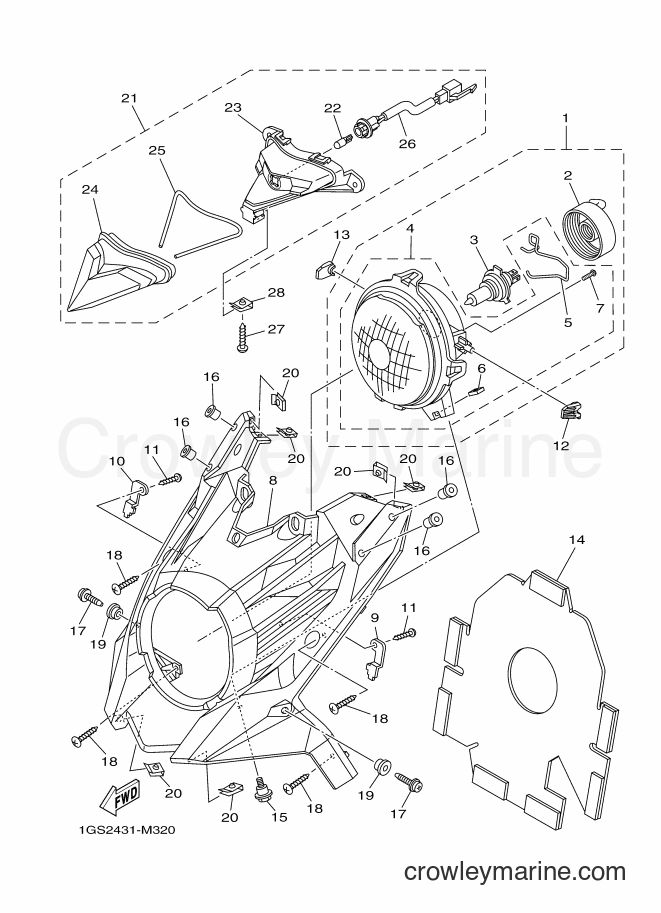

2013 Scooter AF115FX - AF115FX (1GS2) [010] HEADLIGHT diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors AF115FX (1GS2) [010] - HEADLIGHT
Change View:
1
Required: 1
HEADLIGHT UNIT ASSY
Price unavailable
2
Required: 1
. COVER, SOCKET
Price unavailable
3
Required: 1
. BULB, HEADLIGHT (12V35/35W)
Price unavailable
4
Required: 1
. HEADLIGHT UNIT ASSY
Price unavailable
5
Required: 1
. . SPRING, SET
Price unavailable
6
Required: 1
. . NUT, SQUARE
Price unavailable
7
Required: 1
. . SCREW, TAPPING
Price unavailable
8
Required: 1
COVER, HEADLIGHT
Price unavailable
9
Required: 1
BRACKET 1
Price unavailable
10
Required: 1
BRACKET 2
Price unavailable
Tapping Screw
11
Yamaha Motors
Tapping Screw97702-50016-00
Required: 2
SCREW, TAPPING
Cross Ship
Leaves in 2-5 days
$2.60
$2.21
You save $0.39
More details
12
Required: 1
HOLDER, 1
Price unavailable
13
Required: 1
HOLDER, 2
Price unavailable
14
Required: 1
COVER, SOCKET
Price unavailable
15
Required: 1
BOLT
Price unavailable
16
Required: 4
NUT
Price unavailable
17
Required: 2
SCREW, WITH WASHER
Price unavailable
Tapping Screw
18
Yamaha Motors
Tapping Screw97702-50016-00
Required: 4
SCREW, TAPPING
Cross Ship
Leaves in 2-5 days
$2.60
$2.21
You save $0.39
More details
19
Required: 2
COLLAR
Price unavailable
21
Required: 1
PILOT LIGHT ASSY 1
Price unavailable
22
Required: 1
. BULB (12V-5W)
Price unavailable
23
Required: 1
. BODY, PILOT LIGHT
Price unavailable
24
Required: 1
. LENS, PILOT
Price unavailable
25
Required: 1
. GASKET, SENDER UNIT
Price unavailable
26
Required: 1
. CORD ASSY
Price unavailable
Truss Screw
27
Yamaha Motors
Truss Screw97707-50012-00
Required: 3
SCREW, TAPPING
Supersedes: 97702-50012-00
Cross Ship
Leaves in 2-5 days
$4.63
$3.94
You save $0.69
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
