All diagrams for this model

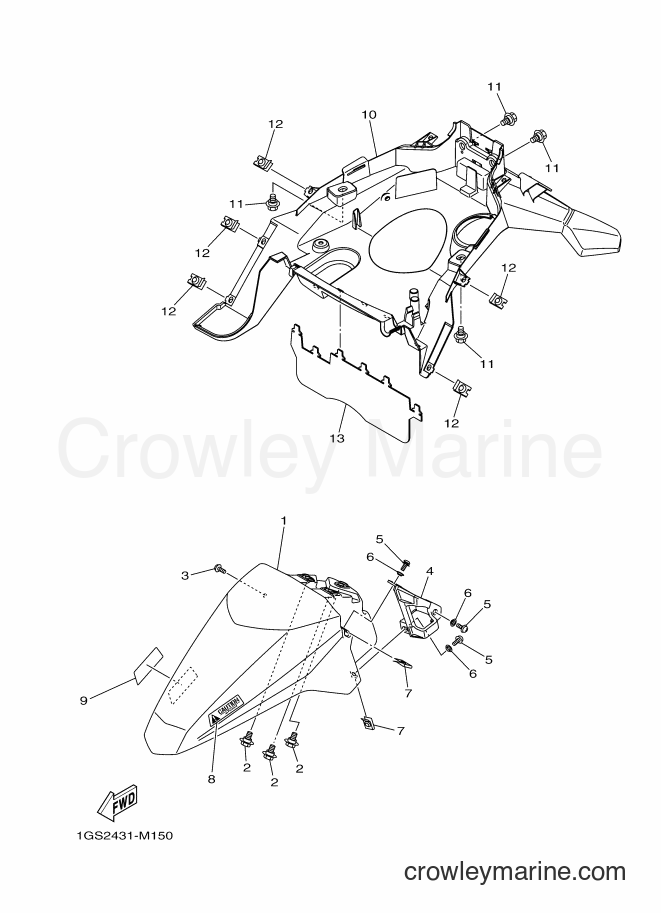

2013 Scooter AF115FX - AF115FX (1GS2) [010] FENDER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors AF115FX (1GS2) [010] - FENDER
Change View:
1
Required: 1
FENDER, FRONT (0582,MBL2)
Price unavailable
3
Required: 1
SCREW, WITH WASHER
Price unavailable
4
Required: 1
HOLDER
Price unavailable
5
Required: 3
SCREW,WITH WASHER
Price unavailable
6
Required: 3
COLLAR
Price unavailable
Spring Nut
7
Yamaha Motors
Spring Nut90183-050A7-00
Required: 2
NUT, SPRING
Cross Ship
Leaves in 2-5 days
$3.80
$3.23
You save $0.57
More details
8
Required: 1
GRAPHIC 3
Price unavailable
9
Required: 1
GRAPHIC 4
Price unavailable
10
Required: 1
FENDER, REAR
Price unavailable
13
Required: 1
FLAP
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
