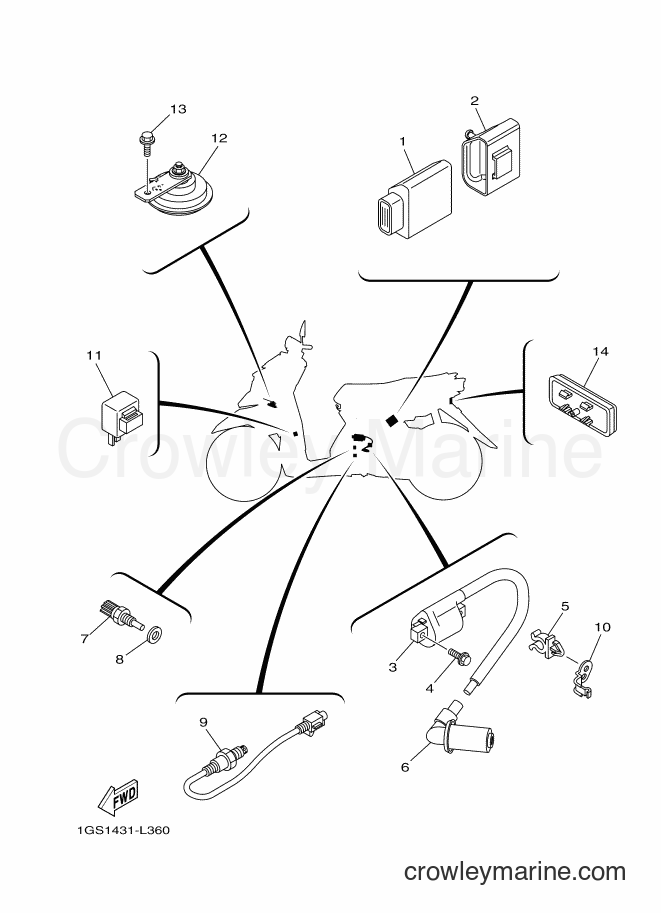

2013 Scooter AF115FX - AF115FX (1GS2) [010] ELECTRICAL 2 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors AF115FX (1GS2) [010] - ELECTRICAL 2
Change View:
1
Required: 1
ENGINE CONTROL UNIT ASSY
Price unavailable
2
Required: 1
BAND
Price unavailable
3
Required: 1
IGNITION COIL ASSY
Price unavailable
Flange Bolt
4
Yamaha Motors
Flange Bolt95022-06020-00
Required: 2
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$3.90
$3.32
You save $0.58
More details
5
Required: 1
CLAMP
Price unavailable
6
Required: 1
PLUG CAP ASSY
Price unavailable
7
Required: 1
THERMO UNIT
Price unavailable
Tank Cap Gasket
8
Yamaha Motors
Tank Cap Gasket90430-10804-00
Required: 1
GASKET
Cross Ship
Leaves in 2-5 days
$5.49
$4.67
You save $0.82
More details
9
Required: 1
SENSOR, OXYGEN
Price unavailable
10
Required: 1
CLAMP
Price unavailable
11
Required: 1
FLASHER RELAY ASSY
Price unavailable
12
Required: 1
HORN
Price unavailable
95817-06010-00
13
Yamaha Motors
95817-06010-0095812-06010-00
Required: 1
BOLT, FLANGE
Supersedes: 95802-06010-00
Cross Ship
Leaves in 2-5 days
$3.20
$2.72
You save $0.48
More details
14
Required: 1
REAR REFLECTOR ASSY
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
