2013 Scooter AF115F - AF115F (1YC4) [010] FENDER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

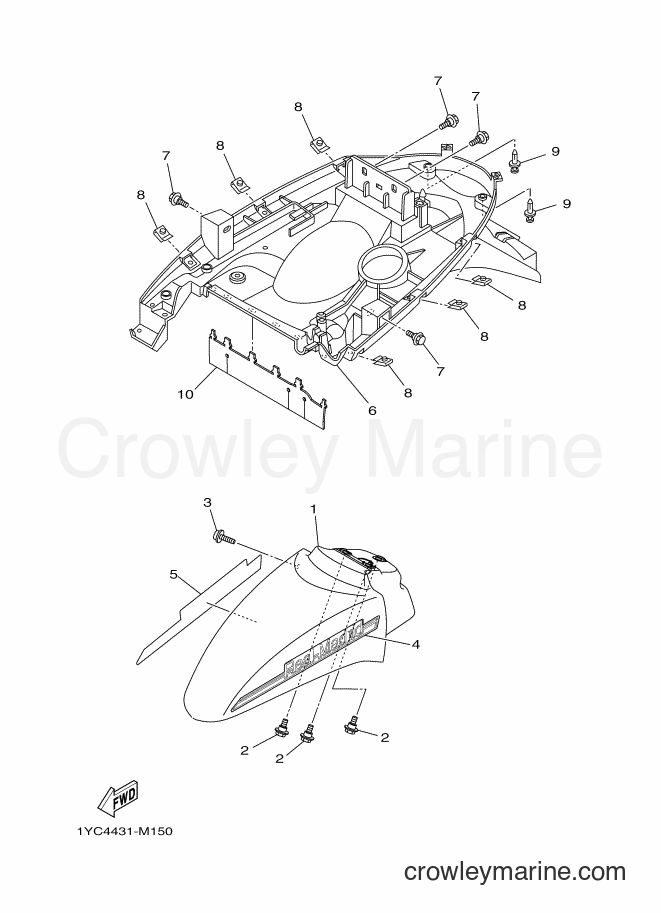

Yamaha Motors AF115F (1YC4) [010] - FENDER
Change View:
1
Required: 1
FENDER, FRONT (1201,VPBC6)
Price unavailable
3
Required: 1
SCREW, WITH WASHER
Price unavailable
4
Required: 1
GRAPHIC 5
Price unavailable
5
Required: 1
GRAPHIC 6
Price unavailable
6
Required: 1
FENDER, REAR
Price unavailable
RIVET
9
Yamaha Motors
RIVET90269-06812-00
Required: 2
RIVET
Cross Ship
Leaves in 2-5 days
$1.30
$1.10
You save $0.20
More details
10
Required: 1
FLAP
Price unavailable
