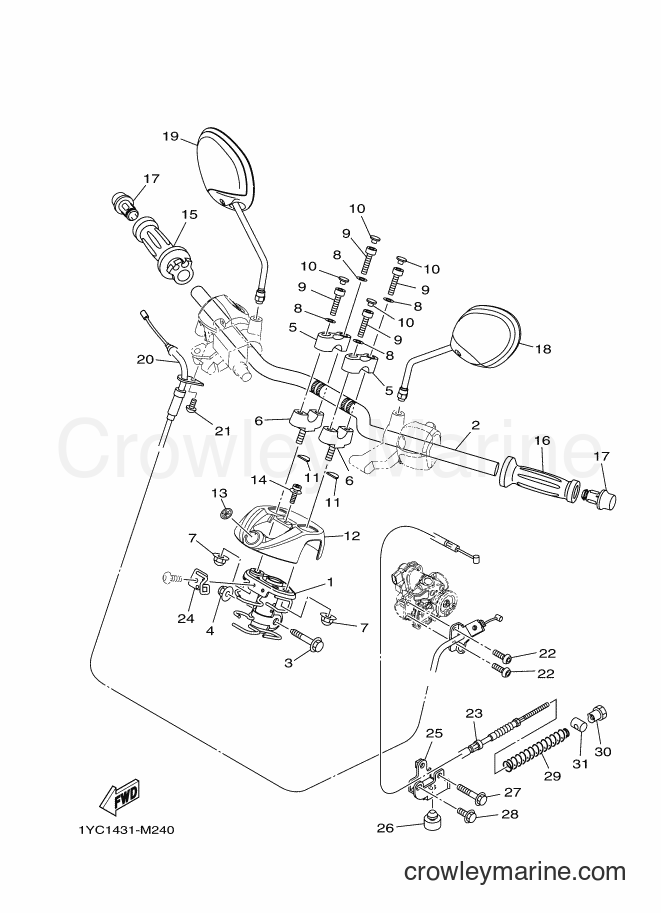

2013 Scooter AF115F - AF115F (1YC3) [010] STEERING HANDLE & CABLE diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors AF115F (1YC3) [010] - STEERING HANDLE & CABLE
Change View:
1
Required: 1
BRACKET, HANDLE
Price unavailable
2
Required: 1
BAR, HANDLE
Price unavailable
Flange Bolt
3
Yamaha Motors
Flange Bolt90105-10864-00
Required: 1
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$3.50
$2.98
You save $0.52
More details
4
Required: 1
NUT, SELF-LOCKING
Price unavailable
5
Required: 2
HOLDER, HANDLE UPPER
Price unavailable
6
Required: 2
HOLDER, HANDLE LOWER
Price unavailable
7
Required: 2
NUT, SELF-LOCKING
Price unavailable
Plain Washer
8
Yamaha Motors
Plain Washer90201-08823-00
Required: 4
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$1.30
$1.10
You save $0.20
More details
Socket Bolt
9
Yamaha Motors
Socket Bolt91317-08025-00
Required: 4
BOLT
Supersedes: 91312-08025-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
10
Required: 4
PLUG
Price unavailable
11
Required: 2
DAMPER
Price unavailable
12
Required: 1
COVER, HANDLE 1(0660,SM1)
Price unavailable
12
Required: 1
COVER, HANDLE 1(1124,WM6)
Price unavailable
12
Required: 1
COVER, HANDLE 1(0903,SMX)
Price unavailable
13
Required: 1
EMBLEM
Price unavailable
Screw With Washer
14
Yamaha Motors
Screw With Washer90159-05032-00
Required: 1
SCREW, WITH WASHER
Cross Ship
Leaves in 2-5 days
$0.20
$0.17
You save $0.03
More details
15
Required: 1
GRIP ASSY
Price unavailable
16
Required: 1
GRIP (BLACK)
Price unavailable
17
Required: 2
END, GRIP (1124,WM6)
Price unavailable
17
Required: 2
END, GRIP (0033,YB)
Price unavailable
17
Required: 2
END, GRIP (0660,SM1)
Price unavailable
18
Required: 1
REAR VIEW MIRROR ASSY (1369)
Price unavailable
18
Required: 1
REAR VIEW MIRROR ASSY (0918)
Price unavailable
18
Required: 1
REAR VIEW MIRROR ASSY (1201)
Price unavailable
19
Required: 1
REAR VIEW MIRROR ASSY (1201)
Price unavailable
19
Required: 1
REAR VIEW MIRROR ASSY (1369)
Price unavailable
19
Required: 1
REAR VIEW MIRROR ASSY (0918)
Price unavailable
20
Required: 1
THROTTLE CABLE ASSY
Price unavailable
Button head bolt
21
Yamaha Motors
Button head bolt92012-05016-00
Required: 1
BOLT, BUTTON HEAD
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
Button head bolt
22
Yamaha Motors
Button head bolt92012-05010-00
Required: 2
BOLT, BUTTON HEAD
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
23
Required: 1
CABLE, BRAKE
Price unavailable
24
Required: 1
WIRE GUIDE ASSY.,1
Price unavailable
25
Required: 1
HOLDER, WIRE
Price unavailable
26
Required: 1
STOPPER, MAIN STAND
Price unavailable
Flange Bolt
27
Yamaha Motors
Flange Bolt95022-06040-00
Required: 1
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$3.70
$3.15
You save $0.56
More details
Flange Bolt
28
Yamaha Motors
Flange Bolt95022-06014-00
Required: 1
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$3.40
$2.89
You save $0.51
More details
29
Required: 1
SPRING, COMPRESSION
Price unavailable
30
Required: 1
NUT
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
