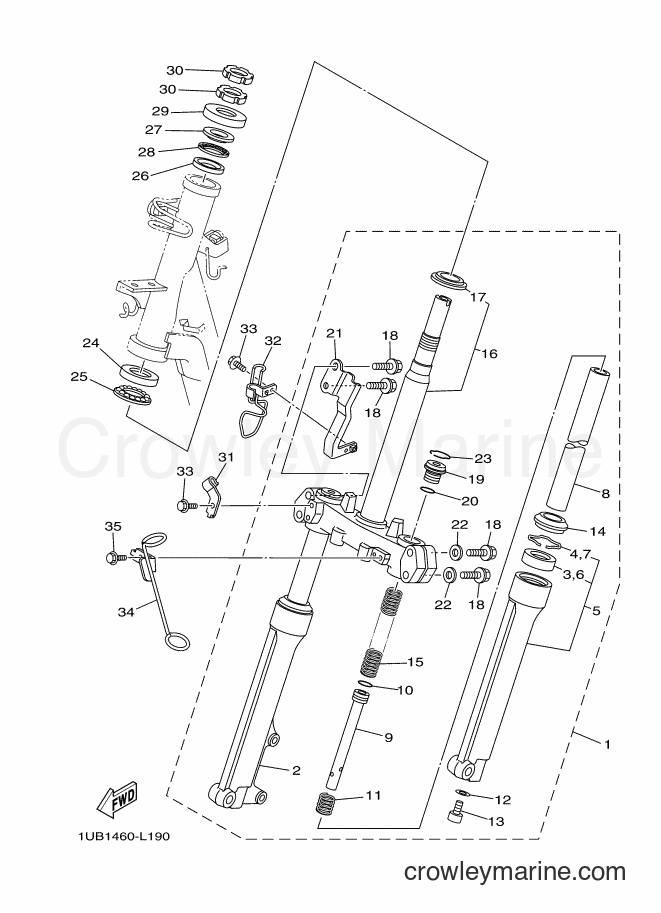

2013 Scooter AF115C - AF115C (1UB6) [010] STEERING diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors AF115C (1UB6) [010] - STEERING
Change View:
1
Required: 1
FRONT FORK ASSY
Price unavailable
2
Required: 1
. TUBE, OUTER (R.H)
Price unavailable
3
Required: 1
. . OIL SEAL
Price unavailable
4
Required: 1
. . RING, SNAP
Price unavailable
5
Required: 1
. TUBE, OUTER (L.H)
Price unavailable
6
Required: 1
. . OIL SEAL
Price unavailable
7
Required: 1
. . RING, SNAP
Price unavailable
8
Required: 2
. INNER TUBE COMP.1
Price unavailable
9
Required: 2
. CYLINDER COMP., FRONT FORK
Price unavailable
10
Required: 2
. RING, PISTON
Price unavailable
11
Required: 2
. SPRING, SUB
Price unavailable
Tank Cap Gasket
12
Yamaha Motors
Tank Cap Gasket509-23158-L0-00
Required: 2
. GASKET
Supersedes: 509-F3158-L0-00
Cross Ship
Leaves in 2-5 days
$17.99
$15.29
You save $2.70
More details
13
Required: 2
. BOLT, HEXAGON SOCKET HEAD
Price unavailable
14
Required: 2
. SEAL, DUST
Price unavailable
15
Required: 2
. SPRING, FRONT FORK
Price unavailable
16
Required: 1
. UNDER BRACKET COMP.
Price unavailable
17
Required: 1
. . RACE, BALL 1
Price unavailable
18
Required: 4
. BOLT 1
Price unavailable
19
Required: 2
. BOLT, CAP
Price unavailable
20
Required: 2
. O-RING
Price unavailable
21
Required: 1
. BRACKET 1
Price unavailable
22
Required: 2
. WASHER, FELT
Price unavailable
23
Required: 2
. RING, SNAP
Price unavailable
Ball Race
24
Yamaha Motors
Ball RaceB6E-23412-00-00
Required: 1
RACE, BALL 2
Supersedes: 156-23412-00-00
Cross Ship
Leaves in 2-5 days
$14.49
$12.32
You save $2.17
More details
25
Required: 1
RETAINER, BALL BEARING (16)
Price unavailable
Ball Race
26
Yamaha Motors
Ball RaceBP2-23412-00-00
Required: 1
RACE, BALL 2
Supersedes: 22F-23412-01-00
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
BALL RACE
27
Yamaha Motors
BALL RACEBP2-23411-00-00
Required: 1
RACE, BALL 1
Supersedes: 22F-23411-01-00
Cross Ship
Leaves in 2-5 days
$12.49
$10.62
You save $1.87
More details
28
Required: 1
RETAINER, BALL BEARING (19)
Price unavailable
29
Required: 1
COVER, BALL RACE 2
Price unavailable
30
Required: 2
NUT
Price unavailable
31
Required: 1
HOLDER, BRAKE HOSE 1
Price unavailable
32
Required: 1
HOLDER, BRAKE HOSE 2
Price unavailable
95817-06010-00
33
Yamaha Motors
95817-06010-0095812-06010-00
Required: 2
BOLT, FLANGE
Supersedes: 95802-06010-00
Cross Ship
Leaves in 2-5 days
$3.20
$2.72
You save $0.48
More details
34
Required: 1
HOLDER, CABLE
Price unavailable
95817-06010-00
35
Yamaha Motors
95817-06010-0095812-06010-00
Required: 1
BOLT, FLANGE
Supersedes: 95802-06010-00
Cross Ship
Leaves in 2-5 days
$3.20
$2.72
You save $0.48
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
