2013 Scooter AF115C - AF115C (1UB6) [010] FENDER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

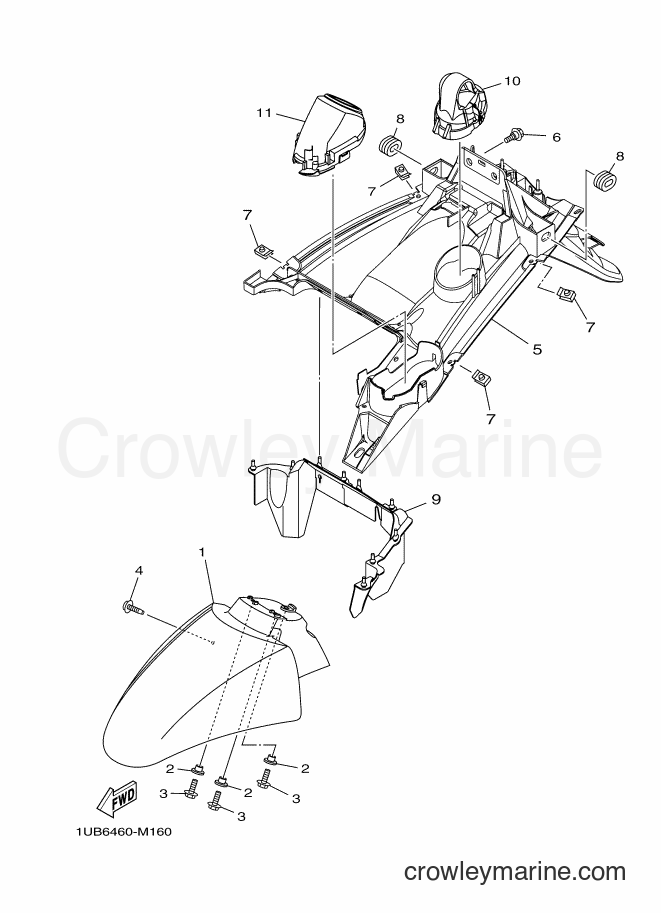

Yamaha Motors AF115C (1UB6) [010] - FENDER
Change View:
1
Required: 1
FENDER, FRONT
Price unavailable
95821-06014-00
3
Yamaha Motors
95821-06014-0095802-06014-00
Required: 3
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$0.40
$0.67
You save $-0.27
More details
4
Required: 1
SCREW, WITH WASHER
Price unavailable
5
Required: 1
FENDER, REAR
Price unavailable
BOLT
6
Yamaha Motors
BOLT90109-063F1-00
Required: 2
BOLT
Cross Ship
Leaves in 2-5 days
$3.10
$2.63
You save $0.47
More details
8
Required: 2
GROMMET
Price unavailable
9
Required: 1
FLAP
Price unavailable
10
Required: 1
COVER, REAR FENDER 1
Price unavailable
11
Required: 1
COVER, REAR FENDER 2
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
