All diagrams for this model

2013 Scooter AF115C - AF115C (1UB6) [010] ELECTRICAL 1 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

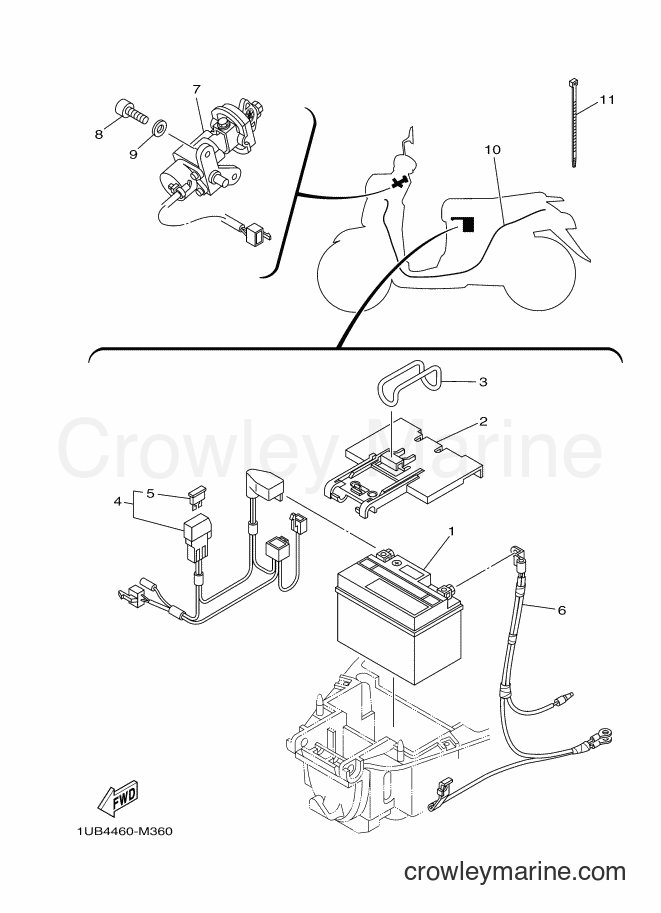

Yamaha Motors AF115C (1UB6) [010] - ELECTRICAL 1
Change View:
1
Required: 1
BATTERY ASSY (GS GZ4V)
Price unavailable
1
Required: 1
BATTERY ASSY (YUASA YTZ4V)
Price unavailable
2
Required: 1
COVER, BATTERY
Price unavailable
BATTERY BAND
3
Yamaha Motors
BATTERY BAND5VV-H2131-00-00
Required: 1
BAND, BATTERY
Supersedes: 5TL-H2131-00-00
Cross Ship
Leaves in 2-5 days
$2.90
$2.46
You save $0.44
More details
4
Required: 1
FUSE HOLDER ASSY
Price unavailable
5
Required: 1
. FUSE (10A)
Price unavailable
6
Required: 1
WIRE, MINUS LEAD
Price unavailable
7
Required: 1
MAIN SWITCH SUB ASSY.
Price unavailable
BOLT
8
Yamaha Motors
BOLT91312-06014-00
Required: 2
BOLT
Cross Ship
Leaves in 2-5 days
$5.49
$4.67
You save $0.82
More details
10
Required: 1
WIRE HARNESS ASSY
Price unavailable
Clamp
11
Yamaha Motors
Clamp90464-70800-00
Required: 1
CLAMP
Cross Ship
Leaves in 2-5 days
$0.85
$0.72
You save $0.13
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
