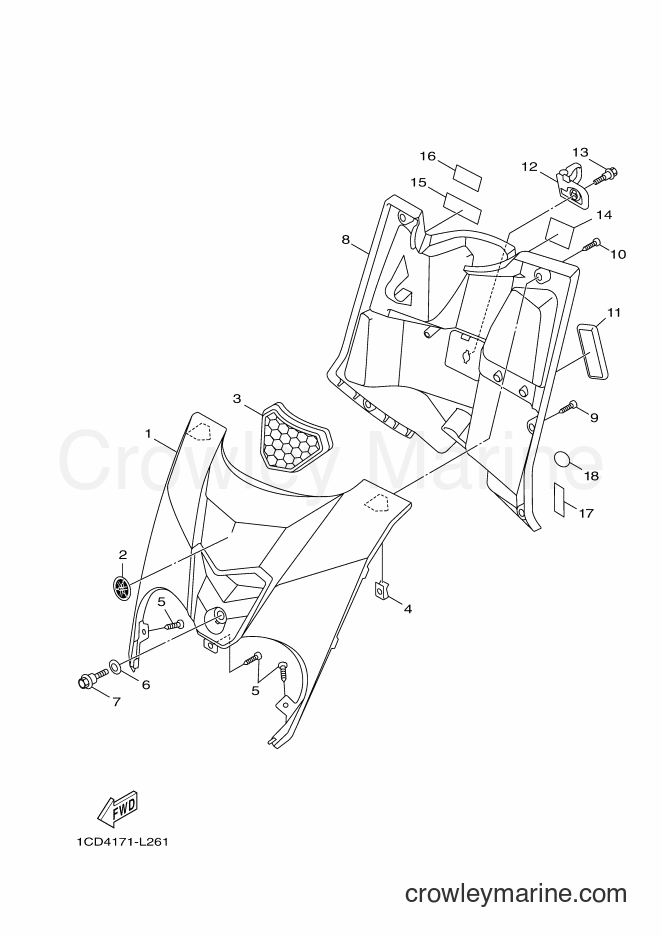

2012 Scooter YW50F - YW50F (1CD2) [010] LEG SHIELD diagram
$25.49
You save $4.50
$2.00
You save $0.35
$2.04
You save $0.36

4
Yamaha Motors
Spring Nut90183-05827-00
Required: 2
NUT, SPRING
Supersedes: 90183-05816-00
$1.40
You save $0.25

5
Yamaha Motors
Truss Screw97707-50012-00
Required: 3
SCREW, TRUSS HEAD TAPPING
$3.94
You save $0.69

6
Yamaha Motors
Bolt with Washer90119-06887-00
Required: 1
BOLT, WITH WASHER
$1.57
You save $0.28
$1.49
You save $0.26

8
Yamaha Motors
Leg Shield Assembly1CD-F8300-00-00
Required: 1
LEG SHIELD ASSY
$33.14
You save $5.85

9
Yamaha Motors
Truss Head Tapping Screw97707-50016-00
Required: 2
SCREW, TRUSS HEAD TAPPING
In stock
Only 4 remaining
$1.57
You save $0.28

10
Yamaha Motors
Truss Screw97707-50012-00
Required: 2
SCREW, TRUSS HEAD TAPPING
$3.94
You save $0.69
$2.00
You save $0.35
$8.07
You save $1.42
$1.91
You save $0.34

14
Yamaha Motors
Caution Label3D1-F4877-11-00
Required: 1
LABEL, CAUTION
$1.02
You save $0.18

15
Yamaha Motors
Caution Label3D1-F118K-10-00
Required: 1
LABEL, CAUTION
$2.25
You save $0.40
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
