All diagrams for this model

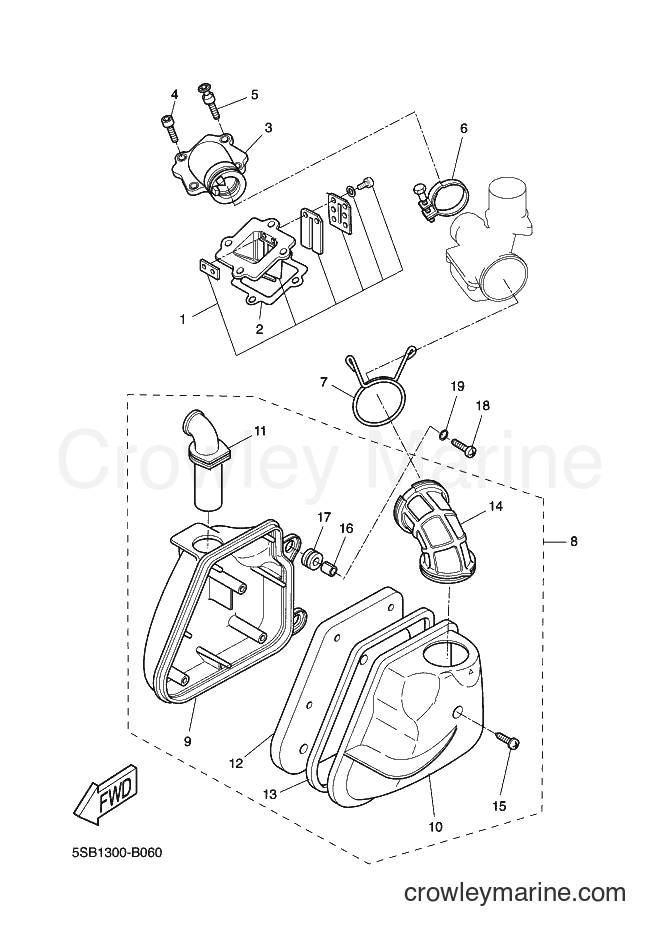

2012 Scooter YQ50L - YQ50L (4B08) [020] INTAKE diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors YQ50L (4B08) [020] - INTAKE
Change View:
REED VALVE ASSEMBLY
1
Yamaha Motors
REED VALVE ASSEMBLY3KJ-13610-00-00
Required: 1
REED VALVE ASSY
Cross Ship
Leaves in 2-5 days
$47.99
$40.79
You save $7.20
More details
2
Required: 1
GASKET, VALVE SEAT
Price unavailable
3
Required: 1
MANIFOLD, INTAKE
Price unavailable
Hexagon Socket Head Bolt
4
Yamaha Motors
Hexagon Socket Head Bolt90110-06X03-00
Required: 2
BOLT, HEXAGON SOCKET HEAD
Cross Ship
Leaves in 2-5 days
Price unavailable
More details
5
Required: 2
SCREW
Price unavailable
6
Required: 1
HOSE CLAMP ASSY
Price unavailable
7
Required: 1
CLIP
Price unavailable
8
Required: 1
AIR CLEANER ASSY.
Price unavailable
9
Required: 1
. CASE, AIR CLEANER 1
Price unavailable
10
Required: 1
. CAP, CLEANER CASE 1
Price unavailable
11
Required: 1
. DUCT
Price unavailable
12
Required: 1
. ELEMENT, AIR CLEANER
Price unavailable
13
Required: 1
. SEAL
Price unavailable
14
Required: 1
. JOINT, AIR CLEANER 1
Price unavailable
15
Required: 3
. SCREW, TAPPING
Price unavailable
COLLAR
16
Yamaha Motors
COLLAR90387-067V1-00
Required: 2
. COLLAR
Supersedes: 90387-06X06-00
Cross Ship
Leaves in 2-5 days
$3.20
$2.72
You save $0.48
More details
17
Required: 2
. GROMMET
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
