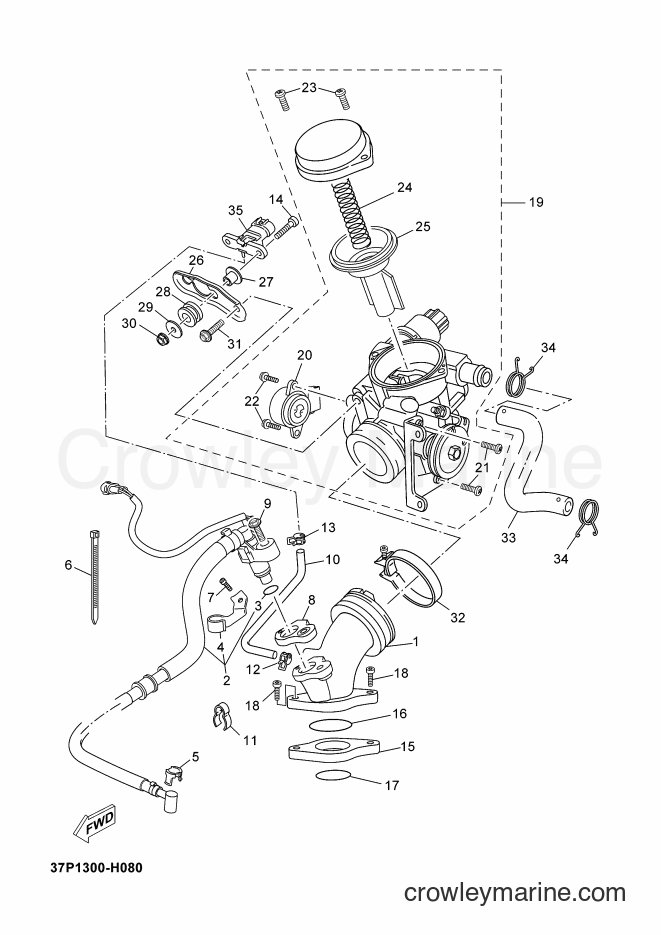

2012 Scooter YP250R - YP250R (1YS4) [010] INTAKE diagram
![Yamaha Motors YP250R (1YS4) [010] - INTAKE](https://cdn.crowleymarine.com/yamaha/iViDDIrA.png)
1
Required: 1
MANIFOLD
Price unavailable
2
Required: 1
PIPE INLET ASSEMBLY
Price unavailable
$9.34
You save $1.65
4
Required: 1
. STAY
Price unavailable
$18.69
You save $3.30
6
Required: 1
CLAMP
Price unavailable
$0.30
You save $0.05
8
Yamaha Motors
Manifold Gasket15B-13556-00-00
Required: 1
GASKET, MANIFOLD
$24.64
You save $4.35
$1.49
You save $0.26
10
Required: 1
HOSE, AIR
Price unavailable
$7.22
You save $1.27
$0.84
You save $0.15
13
Required: 1
CLIP
Price unavailable
In stock
Only 2 remaining
$5.52
You save $0.97
15
Required: 1
JOINT
Price unavailable
16
Required: 1
O-RING
Price unavailable
17
Required: 1
O-RING
Price unavailable
18
Required: 2
BOLT, HEXAGON SOCKET HEAD
Price unavailable
19
Required: 1
THROTTLE BODY ASSY
Price unavailable
20
Yamaha Motors
Throttle Sensor Assembly5RU-85885-00-00
Required: 1
. THROTTLE SENSOR ASSY
$96.04
You save $16.95
21
Yamaha Motors
PAN HEAD SCREW (3SX)98517-05010-00
Required: 2
. SCREW, PAN HEAD
Supersedes: 98507-05010-00
In stock
Only 4 remaining
$3.91
You save $0.69
$0.51
You save $0.09
$5.09
You save $0.90
24
Required: 1
. SPRING
Price unavailable
25
Required: 1
. VALVE ASSY
Price unavailable
26
Required: 1
BRACKET 1
Price unavailable
27
Required: 2
COLLAR
Price unavailable
28
Required: 2
GROMMET
Price unavailable
29
Required: 2
WASHER, PLATE
Price unavailable
$0.85
You save $0.15
In stock
Only 4 remaining
$4.67
You save $0.82
32
Yamaha Motors
Hose Clamp Assembly90450-52007-00
Required: 1
HOSE CLAMP ASSY
$10.62
You save $1.87
33
Required: 1
HOSE, AIR 2
Price unavailable
34
Required: 2
CLIP
Price unavailable
35
Yamaha Motors
Pressure Sensor1C7-82380-00-00
Required: 1
SENSOR, PRESSURE
$169.99
You save $30.00
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
