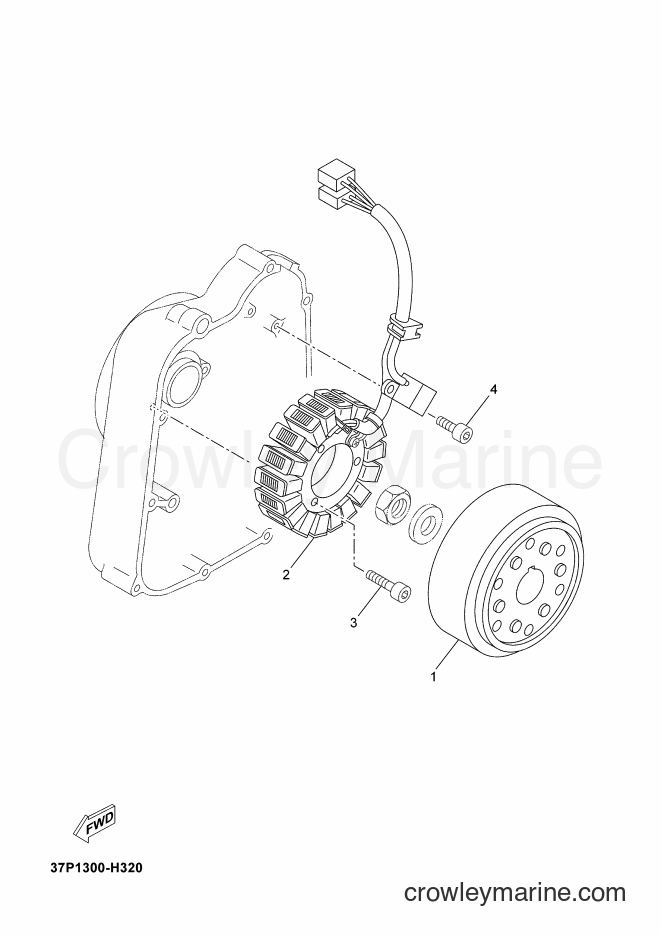

2012 Scooter YP250R - YP250R (1YS4) [020] GENERATOR diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors YP250R (1YS4) [020] - GENERATOR
Change View:
1
Required: 1
ROTOR ASSY
Price unavailable
2
Required: 1
STATOR ASSY
Price unavailable
Bolt
3
Yamaha Motors
Bolt91312-06035-00
Required: 3
BOLT
Cross Ship
Leaves in 2-5 days
$3.28
$2.79
You save $0.49
More details
91317-05012-00
4
Yamaha Motors
91317-05012-0091312-05012-00
Required: 2
BOLT
Cross Ship
Leaves in 2-5 days
$4.65
$3.95
You save $0.70
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
