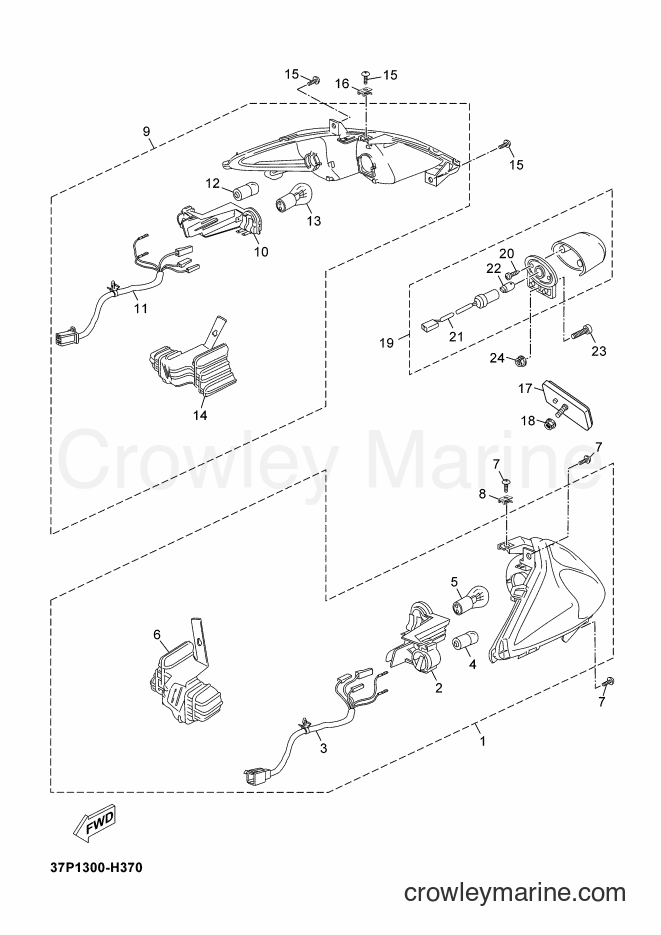

2012 Scooter YP125RA - YP125RA (39DE) [030] TAILLIGHT diagram
![Yamaha Motors YP125RA (39DE) [030] - TAILLIGHT](https://cdn.crowleymarine.com/yamaha/jFjbXsUh.png)
1
Required: 1
TAILLIGHT UNIT ASSY
Price unavailable
2
Required: 1
. HOLDER SOCKET
Price unavailable
3
Required: 1
. CORD, TAIL LIGHT
Price unavailable
4
Required: 1
. BULB, FLASHER
Price unavailable
5
Required: 1
. BULB (12V 21/5W)
Price unavailable
6
Required: 1
. COVER, SOCKET
Price unavailable
7
Yamaha Motors
Truss Head Tapping Screw97707-50016-00
Required: 3
SCREW, TRUSS HEAD TAPPING
In stock
Only 4 remaining
$1.57
You save $0.28
In stock
Only 1 remaining
$0.85
You save $0.15
9
Required: 1
TAILLIGHT UNIT ASSY
Price unavailable
10
Required: 1
. HOLDER SOCKET
Price unavailable
11
Required: 1
. CORD, TAILLIGHT A
Price unavailable
12
Required: 1
. BULB, FLASHER
Price unavailable
13
Required: 1
. BULB (12V 21/5W)
Price unavailable
14
Required: 1
. COVER, SOCKET
Price unavailable
15
Yamaha Motors
Truss Head Tapping Screw97707-50016-00
Required: 3
SCREW, TRUSS HEAD TAPPING
In stock
Only 4 remaining
$1.57
You save $0.28
In stock
Only 1 remaining
$0.85
You save $0.15
17
Required: 1
REAR REFLECTOR ASSY
Price unavailable
18
Yamaha Motors
U Flange Nut95607-05200-00
Required: 1
NUT, SELF-LOCKING
Supersedes: 95602-05200-00
$8.92
You save $1.57
19
Required: 1
LICENCE LIGHT ASSY
Price unavailable
20
Required: 2
. SCREW
Price unavailable
21
Required: 1
. CORD, LICENCE LIGHT
Price unavailable
22
Required: 1
. BULB (12V-5W)
Price unavailable
23
Required: 1
BOLT,HEX. SOCKET BUTTON
Price unavailable
24
Yamaha Motors
U Flange Nut95607-05200-00
Required: 1
NUT, SELF-LOCKING
Supersedes: 95602-05200-00
$8.92
You save $1.57
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
