All diagrams for this model

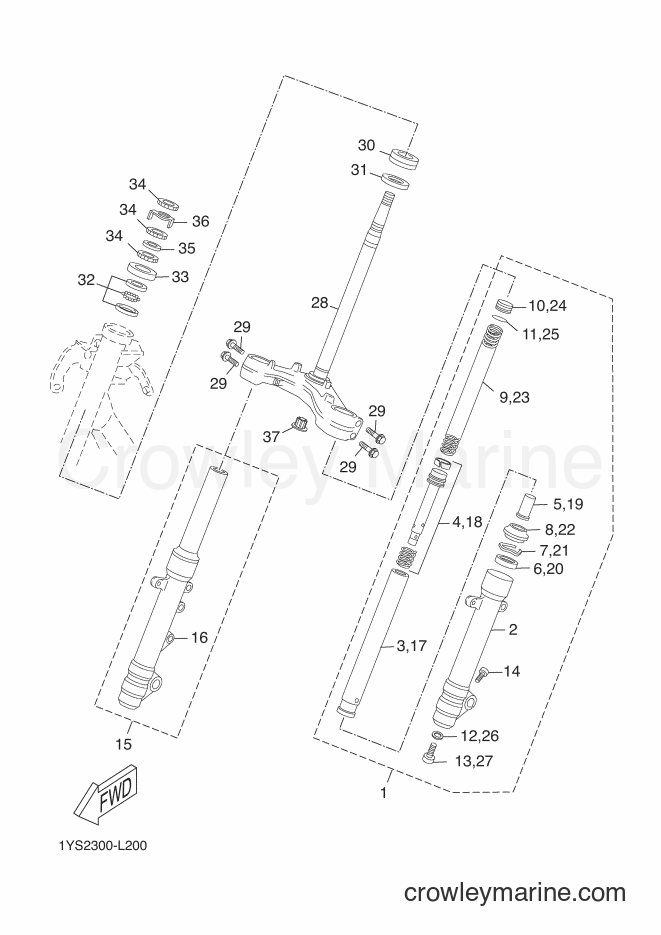

2012 Scooter YP125RA - YP125RA (2AB8) [040] STEERING diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors YP125RA (2AB8) [040] - STEERING
Change View:
1
Required: 1
FRONT FORK ASSY (L.H)
Price unavailable
2
Required: 1
. OUTER TUBE COMP.
Price unavailable
3
Required: 1
. INNER TUBE COMP.1
Price unavailable
4
Required: 1
. CYLINDER COMP., FRONT FORK
Price unavailable
5
Required: 1
. SPACER, OIL LOCK
Price unavailable
6
Required: 1
. OIL SEAL
Price unavailable
7
Required: 1
. RING, SNAP
Price unavailable
8
Required: 1
. SEAL, DUST
Price unavailable
9
Required: 1
. SPRING, FRONT FORK
Price unavailable
10
Required: 1
. BOLT, CAP
Price unavailable
11
Required: 1
. O-RING
Price unavailable
12
Required: 1
. GASKET
Price unavailable
13
Required: 1
. BOLT, HEXAGON SOCKET HEAD
Price unavailable
91317-08030-00
14
Yamaha Motors
91317-08030-0091312-08030-00
Required: 1
. BOLT
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
15
Required: 1
FRONT FORK ASSY (R.H)
Price unavailable
16
Required: 1
. OUTER TUBE COMP. (R.H)
Price unavailable
17
Required: 1
. INNER TUBE COMP.1
Price unavailable
18
Required: 1
. CYLINDER COMP., FRONT FORK
Price unavailable
19
Required: 1
. SPACER, OIL LOCK
Price unavailable
20
Required: 1
. OIL SEAL
Price unavailable
21
Required: 1
. RING, SNAP
Price unavailable
22
Required: 1
. SEAL, DUST
Price unavailable
23
Required: 1
. SPRING, FRONT FORK
Price unavailable
24
Required: 1
. BOLT, CAP
Price unavailable
25
Required: 1
. O-RING
Price unavailable
26
Required: 1
. GASKET
Price unavailable
27
Required: 1
. BOLT, HEXAGON SOCKET HEAD
Price unavailable
28
Required: 1
UNDER BRACKET COMP.
Price unavailable
29
Required: 4
BOLT, SPECIAL
Price unavailable
30
Required: 1
BEARING
Price unavailable
31
Required: 1
SEAL, DUST
Price unavailable
Special Bearing
32
Yamaha Motors
Special Bearing93399-99931-00
Required: 1
BEARING
Cross Ship
Leaves in 2-5 days
$62.99
$53.54
You save $9.45
More details
Ball Race Cover
33
Yamaha Motors
Ball Race Cover1J7-23415-00-00
Required: 1
COVER, BALL RACE 1
Cross Ship
Leaves in 2-5 days
$7.49
$6.37
You save $1.12
More details
34
Required: 3
NUT
Price unavailable
35
Required: 1
WASHER, PLATE
Price unavailable
36
Required: 1
WASHER, SPECIAL
Price unavailable
37
Required: 1
COVER, UNDER 1
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
