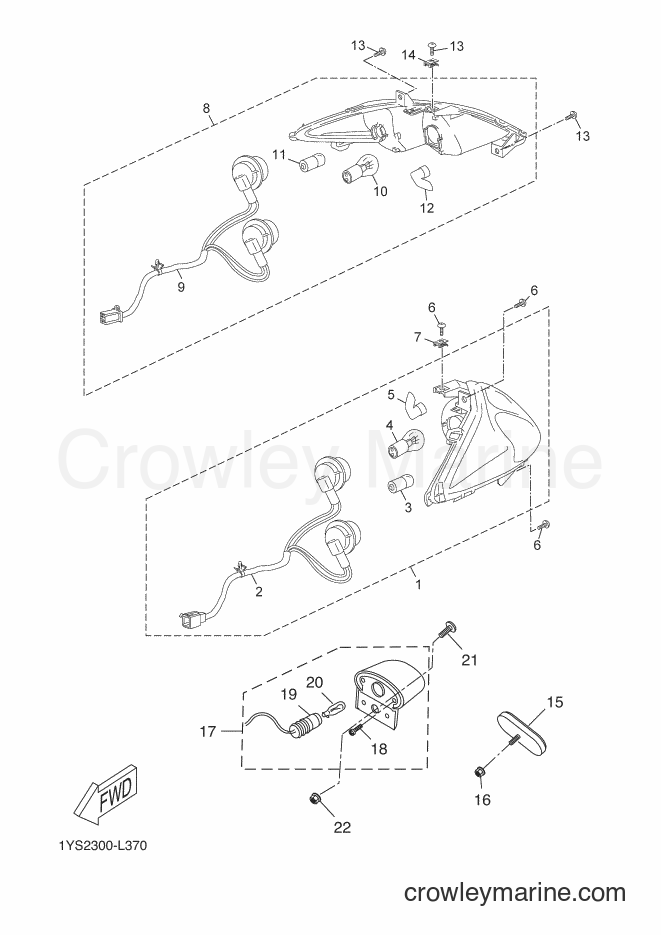

2012 Scooter YP125RA - YP125RA (2AB3) [010] TAILLIGHT diagram
![Yamaha Motors YP125RA (2AB3) [010] - TAILLIGHT](https://cdn.crowleymarine.com/yamaha/hqOyEW8k.png)
1
Required: 1
TAILLIGHT UNIT ASSY
Price unavailable
2
Required: 1
. CORD, TAIL LIGHT
Price unavailable
3
Required: 1
. BULB (12V 21/5W)
Price unavailable
4
Required: 1
. BULB (12V 10W)
Price unavailable
5
Required: 1
. GROMMET
Price unavailable
6
Yamaha Motors
Truss Head Tapping Screw97707-50016-00
Required: 3
SCREW, TRUSS HEAD TAPPING
In stock
Only 4 remaining
$1.57
You save $0.28
In stock
Only 1 remaining
$0.85
You save $0.15
8
Required: 1
TAILLIGHT UNIT ASSY
Price unavailable
9
Required: 1
. CORD, TAILLIGHT A
Price unavailable
10
Required: 1
. BULB (12V 21/5W)
Price unavailable
11
Required: 1
. BULB (12V 10W)
Price unavailable
12
Required: 1
. GROMMET
Price unavailable
13
Yamaha Motors
Truss Head Tapping Screw97707-50016-00
Required: 3
SCREW, TRUSS HEAD TAPPING
In stock
Only 4 remaining
$1.57
You save $0.28
In stock
Only 1 remaining
$0.85
You save $0.15
15
Required: 1
REAR REFLECTOR ASSY
Price unavailable
16
Yamaha Motors
U Flange Nut95607-05200-00
Required: 1
NUT, SELF-LOCKING
Supersedes: 95602-05200-00
$8.92
You save $1.57
17
Required: 1
LICENCE LIGHT ASSY
Price unavailable
18
Required: 2
. SCREW
Price unavailable
19
Required: 1
. CORD, LICENCE LIGHT
Price unavailable
20
Required: 1
. BULB (12V-5W)
Price unavailable
21
Required: 1
BOLT,HEX. SOCKET BUTTON
Price unavailable
22
Yamaha Motors
U Flange Nut95607-05200-00
Required: 1
NUT, SELF-LOCKING
Supersedes: 95602-05200-00
$8.92
You save $1.57
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
