All diagrams for this model

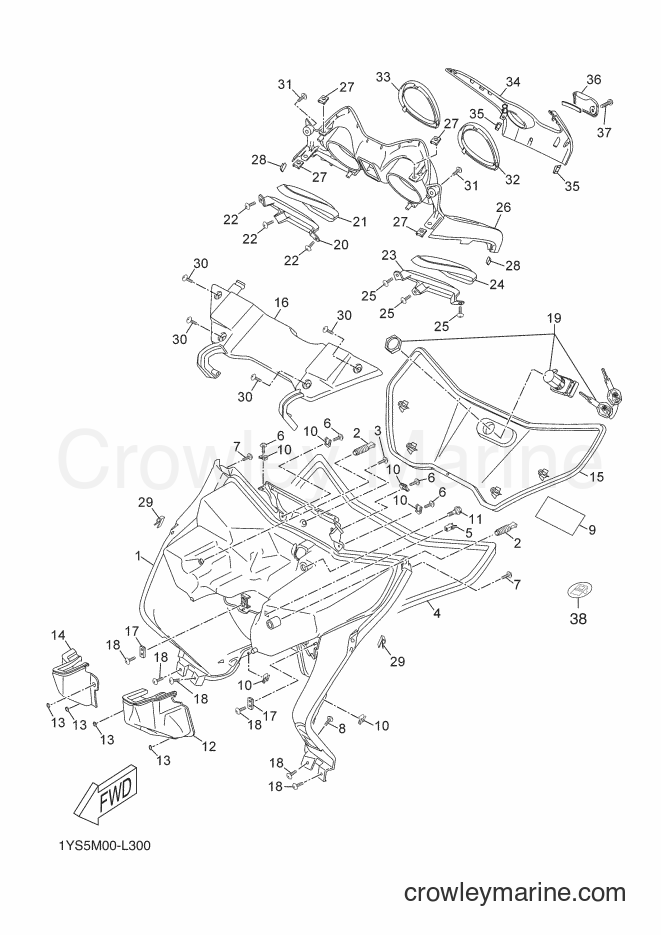

2012 Scooter YP125R - YP125R (2AB5) [010] LEG SHIELD diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors YP125R (2AB5) [010] - LEG SHIELD
Change View:
1
Required: 1
LEG SHIELD 1
Price unavailable
2
Required: 2
CAP
Price unavailable
SPECIAL SHAPE NUT
3
Yamaha Motors
SPECIAL SHAPE NUT90179-05523-00
Required: 1
NUT
Cross Ship
Leaves in 2-5 days
$7.49
$6.37
You save $1.12
More details
4
Required: 1
DAMPER
Price unavailable
5
Required: 1
PLATE, LOCK 3
Price unavailable
Tapping Screw
7
Yamaha Motors
Tapping Screw90167-05080-00
Required: 2
SCREW, TAPPING
Cross Ship
Leaves in 2-5 days
$2.70
$2.29
You save $0.41
More details
BOLT,HEX. SOCKET BUT
8
Yamaha Motors
BOLT,HEX. SOCKET BUT90111-05021-00
Required: 2
BOLT,HEX. SOCKET BUTTON
Cross Ship
Leaves in 2-5 days
$6.49
$5.52
You save $0.97
More details
9
Required: 1
LABEL, WARNING
Price unavailable
11
Required: 1
BOLT
Price unavailable
12
Required: 1
SEAL, BOX 1
Price unavailable
14
Required: 1
SEAL, BOX 2
Price unavailable
15
Required: 1
LID
Price unavailable
16
Required: 1
PLATE, FRONT
Price unavailable
17
Required: 2
BRACKET
Price unavailable
19
Required: 1
LOCK ASSY
Price unavailable
20
Required: 1
HOLDER
Price unavailable
21
Required: 1
DAMPER 6
Price unavailable
23
Required: 1
PLATE
Price unavailable
24
Required: 1
DAMPER 5
Price unavailable
26
Required: 1
PANEL, INNER 3
Price unavailable
Reverse Arm Hook
28
Yamaha Motors
Reverse Arm Hook5GM-28379-01-00
Required: 2
HOOK
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
29
Required: 2
CLIP
Price unavailable
Tapping Screw
31
Yamaha Motors
Tapping Screw90167-05080-00
Required: 2
SCREW, TAPPING
Cross Ship
Leaves in 2-5 days
$2.70
$2.29
You save $0.41
More details
Reverse Arm Hook
35
Yamaha Motors
Reverse Arm Hook5GM-28379-01-00
Required: 2
HOOK
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
36
Required: 1
COVER 2
Price unavailable
Button head bolt
37
Yamaha Motors
Button head bolt92017-05020-00
Required: 1
BOLT, BUTTON HEAD
Cross Ship
Leaves in 2-5 days
$3.90
$3.32
You save $0.58
More details
38
Required: 1
LABEL, CAUTION
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
