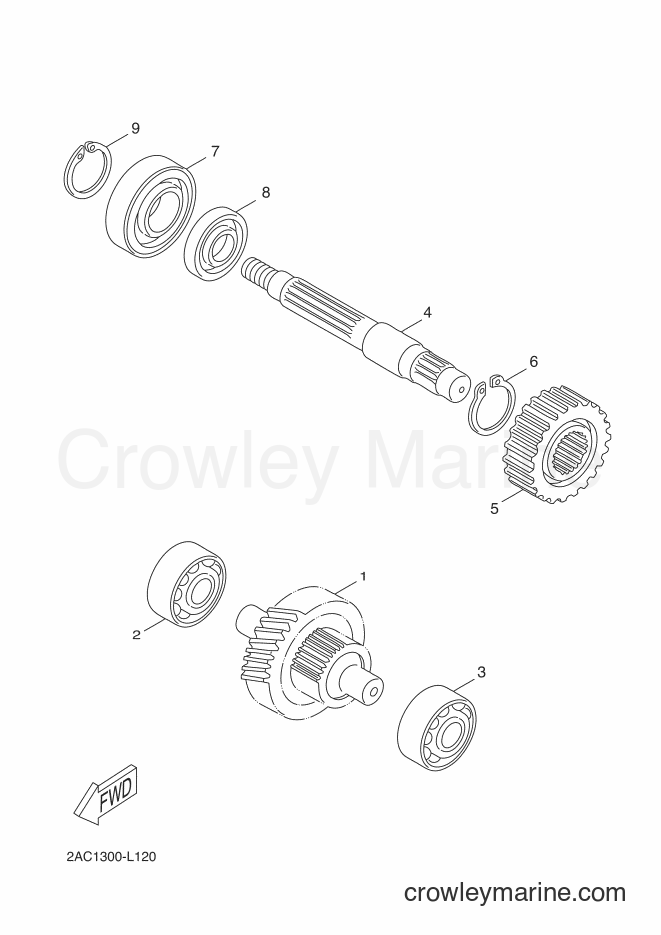

2012 Scooter YN50F - YN50F (2AC1) [080] TRANSMISSION diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors YN50F (2AC1) [080] - TRANSMISSION
Change View:
1
Required: 1
MAIN AXLE COMP. (12T/52T)
Price unavailable
BEARING
2
Yamaha Motors
BEARING93306-30101-00
Required: 1
BEARING
Supersedes: 93306-301Y1-00
Cross Ship
Leaves in 2-5 days
$39.99
$33.99
You save $6.00
More details
BEARING
3
Yamaha Motors
BEARING93306-30101-00
Required: 1
BEARING
Supersedes: 93306-301Y1-00
Cross Ship
Leaves in 2-5 days
$39.99
$33.99
You save $6.00
More details
4
Required: 1
AXLE, DRIVE
Price unavailable
5
Required: 1
GEAR, 1ST WHEEL (44T)
Price unavailable
Circle Clip
6
Yamaha Motors
Circle Clip93410-20823-00
Required: 1
CIRCLIP
Cross Ship
Leaves in 2-5 days
$0.35
$0.30
You save $0.05
More details
BEARING
7
Yamaha Motors
BEARING93306-004X7-00
Required: 1
BEARING
Cross Ship
Leaves in 2-5 days
$12.49
$10.62
You save $1.87
More details
Oil Seal
8
Yamaha Motors
Oil Seal93102-25804-00
Required: 1
OIL SEAL
Cross Ship
Leaves in 2-5 days
$2.45
$2.08
You save $0.37
More details
Circle Clip
9
Yamaha Motors
Circle Clip99009-42500-00
Required: 1
CIRCLIP
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
