2012 Scooter YN50 - YN50 (2AP6) [020] LEG SHIELD diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

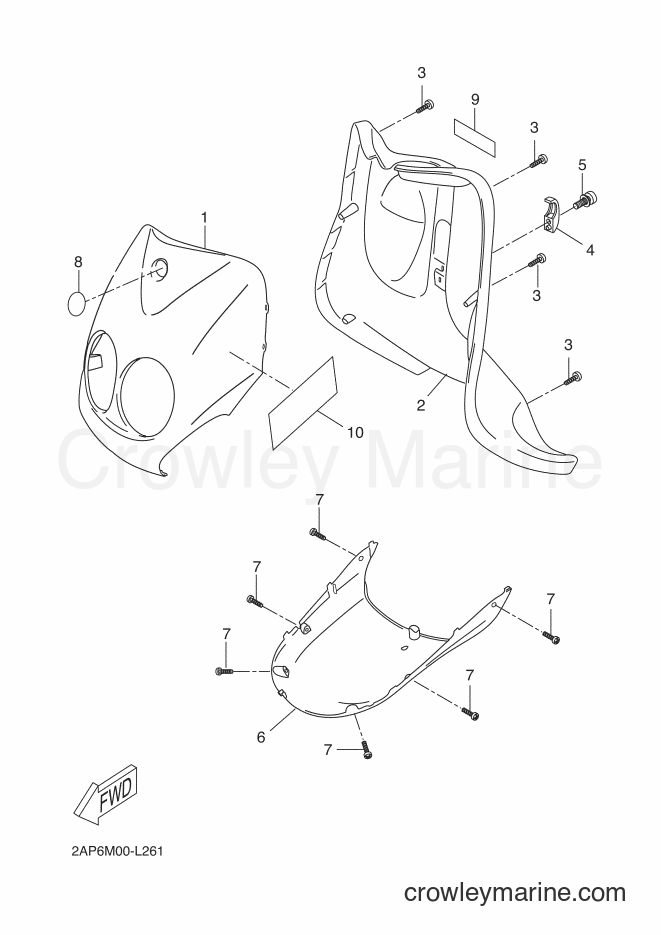

Yamaha Motors YN50 (2AP6) [020] - LEG SHIELD
Change View:
2
Required: 1
LEG SHIELD 2
Price unavailable
3
Required: 6
SCREW, TAPPING
Price unavailable
4
Required: 1
HOOK
Price unavailable
5
Required: 1
BOLT, WITH WASHER
Price unavailable
6
Required: 1
COVER, UNDER
Price unavailable
7
Required: 6
SCREW, TAPPING
Price unavailable
8
Required: 1
EMBLEM
Price unavailable
9
Required: 1
LABEL, WARNING
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
