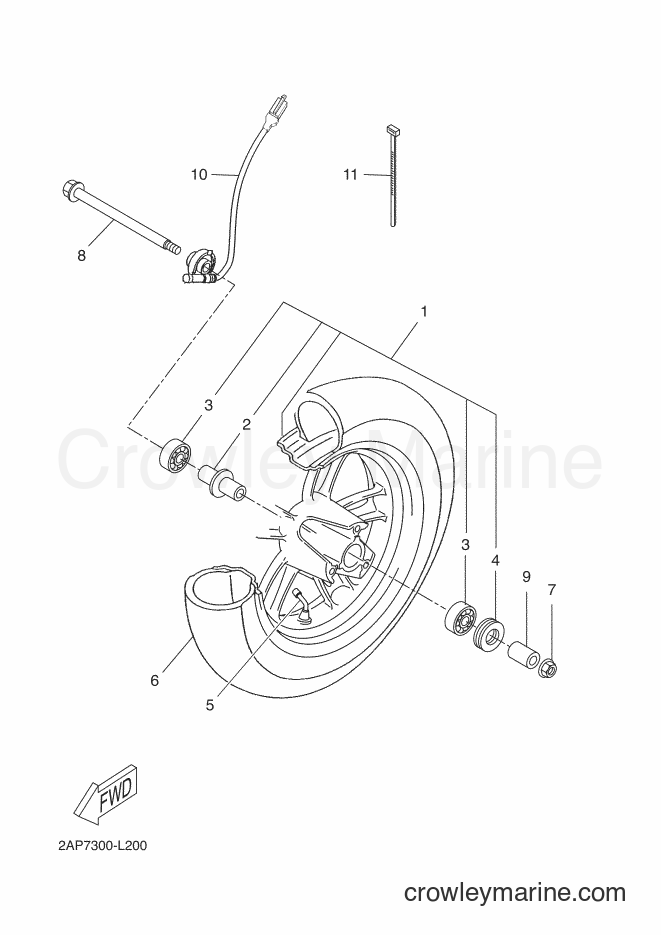

2012 Scooter YN50 - YN50 (2AP6) [010] FRONT WHEEL diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors YN50 (2AP6) [010] - FRONT WHEEL
Change View:
1
Required: 1
CAST WHEEL, FRONT
Price unavailable
2
Required: 1
. SPACER, BEARING
Price unavailable
3
Required: 2
. BEARING
Price unavailable
4
Required: 1
. OIL SEAL
Price unavailable
Air Valve Assembly
5
Yamaha Motors
Air Valve Assembly3VL-F5170-10-00
Required: 1
AIR VALVE ASSY
Cross Ship
Leaves in 2-5 days
$16.49
$14.02
You save $2.47
More details
6
Required: 1
TIRE (120/70-12 51L)
Price unavailable
Self-Locking Nut
7
Yamaha Motors
Self-Locking Nut90185-10154-00
Required: 1
NUT, SELF-LOCKING
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
Pivot Shaft
8
Yamaha Motors
Pivot Shaft486-22141-01-00
Required: 1
SHAFT, PIVOT
Cross Ship
Leaves in 2-5 days
$36.99
$31.44
You save $5.55
More details
9
Required: 1
SPACER
Price unavailable
10
Required: 1
SENSOR, UNIT
Price unavailable
11
Required: 2
CLAMP
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
