2012 Scooter XP500 - XP500 (59C1) [050] GENERATOR diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

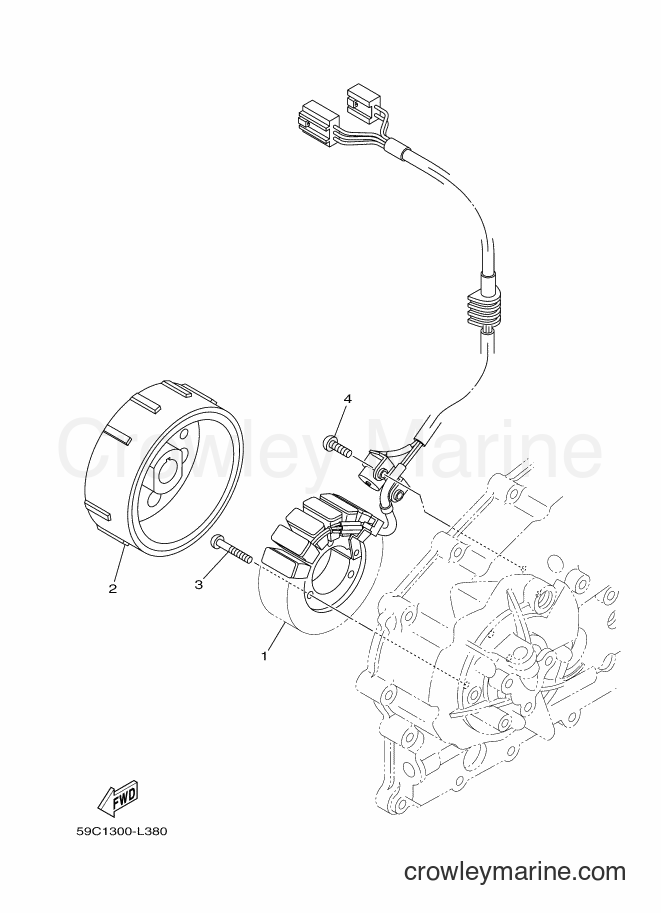

Yamaha Motors XP500 (59C1) [050] - GENERATOR
Change View:
Alternator Stator Assembly
1
Yamaha Motors
Alternator Stator Assembly59C-81410-00-00
Required: 1
STATOR ASSY
Cross Ship
Leaves in 2-5 days
$280.99
$238.84
You save $42.15
More details
Rotor Assembly
2
Yamaha Motors
Rotor Assembly59C-81450-00-00
Required: 1
ROTOR ASSY
Cross Ship
Leaves in 2-5 days
$288.99
$245.64
You save $43.35
More details
Screw (M8 X 40)
3
Yamaha Motors
Screw (M8 X 40)90149-06122-00
Required: 3
SCREW
Supersedes: 90149-06093-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
Screw (M8 X 40)
4
Yamaha Motors
Screw (M8 X 40)90149-06081-00
Required: 2
SCREW
Supersedes: 90149-06082-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
