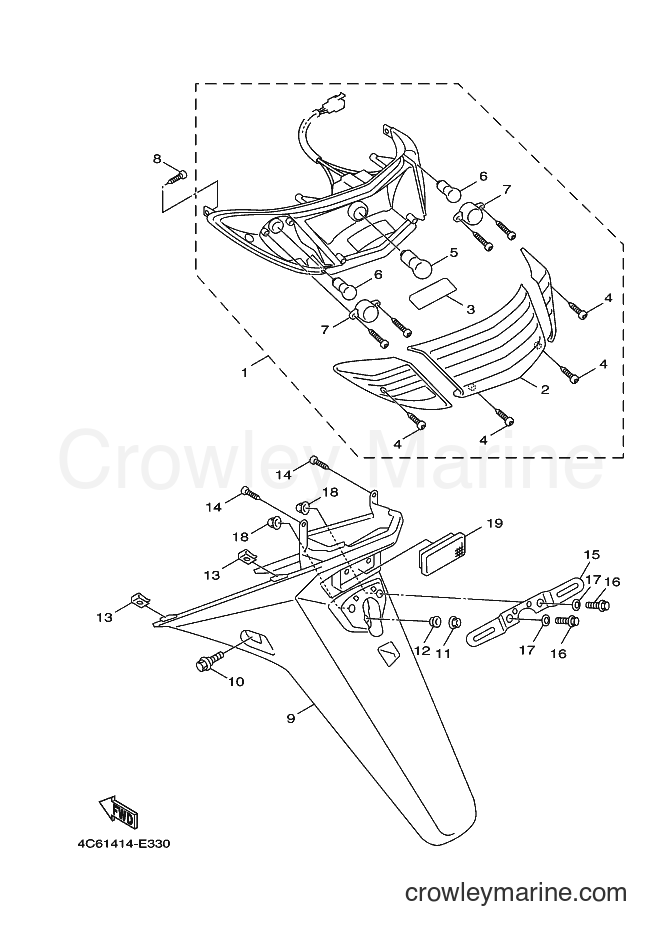

2012 Scooter XC125 - XC125 (4P9B) [010] TAILLIGHT diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors XC125 (4P9B) [010] - TAILLIGHT
Change View:
1
Required: 1
TAILLIGHT ASSY
Price unavailable
2
Required: 1
. LENS, TAILLIGHT
Price unavailable
3
Required: 1
. LENS, LICENCE LIGHT
Price unavailable
4
Required: 4
. SCREW, LENS FITTING
Price unavailable
Bulb
5
Yamaha Motors
Bulb5ML-H4714-00-00
Required: 1
. BULB
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
Flasher Bulb (12v)
6
Yamaha Motors
Flasher Bulb (12v)5SK-H3311-00-00
Required: 2
. BULB, FLASHER (12V-10W)
Cross Ship
Leaves in 2-5 days
$11.49
$9.77
You save $1.72
More details
7
Required: 2
. LENS, INNER 2
Price unavailable
9
Required: 1
BRACKET, LICENSE
Price unavailable
10
Required: 2
BOLT
Price unavailable
Nut
11
Yamaha Motors
Nut90179-06833-00
Required: 1
NUT
Cross Ship
Leaves in 2-5 days
$1.50
$1.27
You save $0.23
More details
COLLAR
12
Yamaha Motors
COLLAR90387-06868-00
Required: 1
COLLAR
Cross Ship
Leaves in 2-5 days
$1.15
$0.98
You save $0.17
More details
15
Required: 1
BRACKET, LICENSE
Price unavailable
Plate Washer
17
Yamaha Motors
Plate Washer90201-06557-00
Required: 2
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$3.55
$3.02
You save $0.53
More details
NUT
18
Yamaha Motors
NUT95617-06100-00
Required: 2
NUT, U
Supersedes: 95607-06100-00
Cross Ship
Leaves in 2-5 days
$2.90
$2.46
You save $0.44
More details
REAR REFLECTOR ASSEMBLY
19
Yamaha Motors
REAR REFLECTOR ASSEMBLY5ST-H5130-00-00
Required: 1
REAR REFLECTOR ASSY
Cross Ship
Leaves in 2-5 days
$2.25
$1.91
You save $0.34
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
