All diagrams for this model

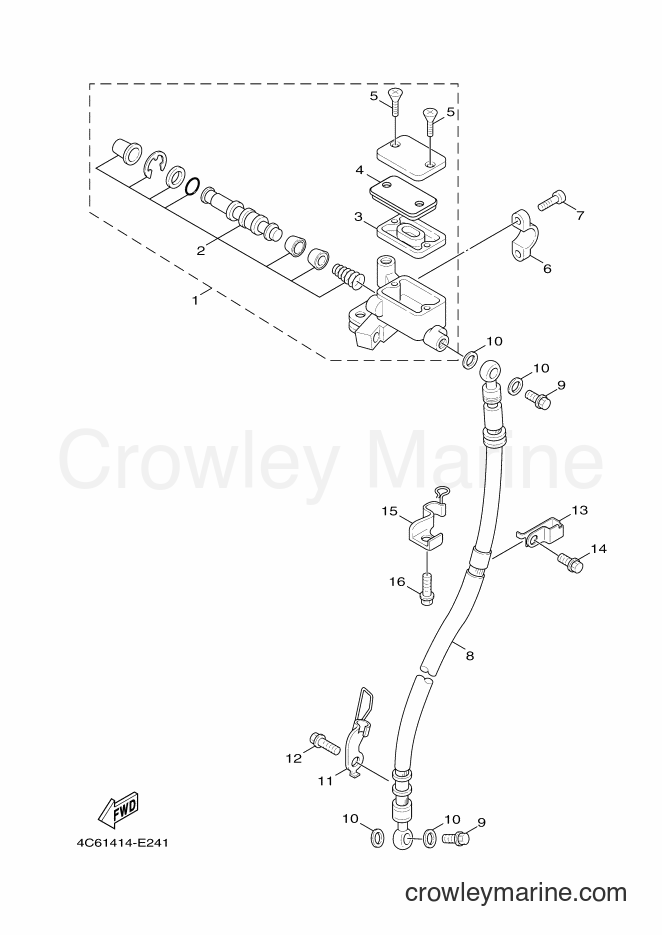

2012 Scooter XC125 - XC125 (4P9B) [010] FRONT MASTER CYLINDER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors XC125 (4P9B) [010] - FRONT MASTER CYLINDER
Change View:
1
Required: 1
MASTER CYLINDER SUB ASSY
Price unavailable
MASTER CYLINDER KIT
2
Yamaha Motors
MASTER CYLINDER KIT5NW-W0041-00-00
Required: 1
. CYLINDER KIT, MASTER
Cross Ship
Leaves in 2-5 days
$11.49
$9.77
You save $1.72
More details
3
Required: 1
. DIAPHRAGM, RESERVOIR
Price unavailable
4
Required: 1
. PLATE, DIAPHRAGM
Price unavailable
Flat Head Screw
5
Yamaha Motors
Flat Head Screw98780-04012-00
Required: 1
. SCREW, FLAT HEAD
Cross Ship
Leaves in 2-5 days
$3.10
$2.63
You save $0.47
More details
6
Required: 1
BRACKET, MASTER CYLINDER
Price unavailable
8
Required: 1
HOSE, BRAKE 1
Price unavailable
Union Bolt (3GM)
9
Yamaha Motors
Union Bolt (3GM)90401-10159-00
Required: 2
BOLT, UNION
Supersedes: 90401-10805-00
Cross Ship
Leaves in 2-5 days
$12.49
$10.62
You save $1.87
More details
Plate Washer
10
Yamaha Motors
Plate Washer90201-10118-00
Required: 4
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$3.80
$3.23
You save $0.57
More details
11
Required: 1
HOLDER, BRAKE HOSE 1
Price unavailable
13
Required: 1
HOLDER, BRAKE HOSE 2
Price unavailable
15
Required: 1
HOLDER, BRAKE HOSE
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
