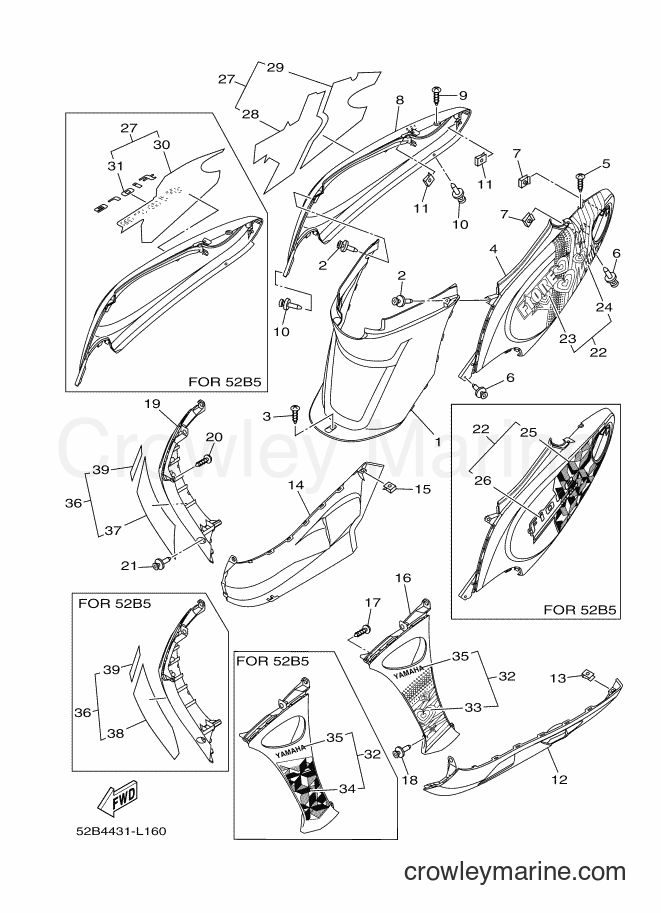

2012 Scooter XC115S - XC115S (52B5) [010] SIDE COVER diagram
![Yamaha Motors XC115S (52B5) [010] - SIDE COVER](https://cdn.crowleymarine.com/yamaha/2e2xyfsL.png)
1
Required: 1
COVER, SIDE 1 (00TR,RTR)
Price unavailable
1
Required: 1
COVER, SIDE 1 (0386,LRYS1)
Price unavailable
$1.10
You save $0.20
$1.36
You save $0.24
4
Required: 1
COVER, SIDE 2 (1124/0903)
Price unavailable
4
Required: 1
COVER, SIDE 2 (1124/0903)
Price unavailable
5
Yamaha Motors
Truss Head Tapping Screw97707-50016-00
Required: 1
SCREW, TRUSS HEAD TAPPING
In stock
Only 4 remaining
$1.57
You save $0.28
$1.10
You save $0.20
7
Yamaha Motors
Spring Nut90183-05042-00
Required: 2
NUT, SPRING
Supersedes: 90183-05807-00
In stock
Only 1 remaining
$0.85
You save $0.15
8
Required: 1
COVER, SIDE 3 (1124/0903)
Price unavailable
8
Required: 1
COVER, SIDE 3 (1124/0903)
Price unavailable
9
Yamaha Motors
Truss Head Tapping Screw97707-50016-00
Required: 1
SCREW, TRUSS HEAD TAPPING
In stock
Only 4 remaining
$1.57
You save $0.28
$1.10
You save $0.20
11
Yamaha Motors
Spring Nut90183-05042-00
Required: 2
NUT, SPRING
Supersedes: 90183-05807-00
In stock
Only 1 remaining
$0.85
You save $0.15
12
Required: 1
MOLE, SIDE COVER 1 (000A,SFS)
Price unavailable
12
Required: 1
MOLE, SIDE COVER 1 (0033,YB)
Price unavailable
13
Yamaha Motors
Spring Nut90183-05042-00
Required: 1
NUT, SPRING
Supersedes: 90183-05807-00
In stock
Only 1 remaining
$0.85
You save $0.15
14
Required: 1
MOLE, SIDE COVER 2 (000A,SFS)
Price unavailable
14
Required: 1
MOLE, SIDE COVER 2 (0033,YB)
Price unavailable
15
Yamaha Motors
Spring Nut90183-05042-00
Required: 1
NUT, SPRING
Supersedes: 90183-05807-00
In stock
Only 1 remaining
$0.85
You save $0.15
16
Required: 1
PANEL 1 (0903,SMX)
Price unavailable
17
Yamaha Motors
Truss Head Tapping Screw97707-50016-00
Required: 1
SCREW, TRUSS HEAD TAPPING
In stock
Only 4 remaining
$1.57
You save $0.28
$1.10
You save $0.20
19
Required: 1
PANEL 2 (0903,SMX)
Price unavailable
20
Yamaha Motors
Truss Head Tapping Screw97707-50016-00
Required: 1
SCREW, TRUSS HEAD TAPPING
In stock
Only 4 remaining
$1.57
You save $0.28
$1.10
You save $0.20
22
Required: 1
GRAPHIC SET, SIDE COVER 1
Price unavailable
22
Required: 1
GRAPHIC SET, SIDE COVER 1
Price unavailable
23
Required: 1
. GRAPHIC 7
Price unavailable
24
Required: 1
. GRAPHIC 9
Price unavailable
25
Required: 1
. GRAPHIC 11
Price unavailable
26
Required: 1
. EMBLEM 1
Price unavailable
27
Required: 1
GRAPHIC SET, SIDE COVER 2
Price unavailable
27
Required: 1
GRAPHIC SET, SIDE COVER 2
Price unavailable
28
Required: 1
. GRAPHIC 8
Price unavailable
29
Required: 1
. GRAPHIC 10
Price unavailable
30
Required: 1
. GRAPHIC 12
Price unavailable
31
Required: 1
EMBLEM 1
Price unavailable
32
Required: 1
GRAPHIC SET PANEL 1
Price unavailable
32
Required: 1
GRAPHIC SET PANEL 1
Price unavailable
33
Required: 1
. GRAPHIC 7
Price unavailable
34
Required: 1
. GRAPHIC 9
Price unavailable
35
Required: 1
. EMBLEM, YAMAHA
Price unavailable
35
Required: 1
. EMBLEM, YAMAHA
Price unavailable
36
Required: 1
GRAPHIC SET PANEL 2
Price unavailable
36
Required: 1
GRAPHIC SET PANEL 2
Price unavailable
37
Required: 1
. GRAPHIC 8
Price unavailable
38
Required: 1
. GRAPHIC, 10
Price unavailable
39
Required: 1
. EMBLEM, YAMAHA
Price unavailable
39
Required: 1
. EMBLEM, YAMAHA
Price unavailable
39
Required: 1
. EMBLEM, YAMAHA
Price unavailable
39
Required: 1
. EMBLEM, YAMAHA
Price unavailable
39
Required: 1
. EMBLEM, YAMAHA
Price unavailable
