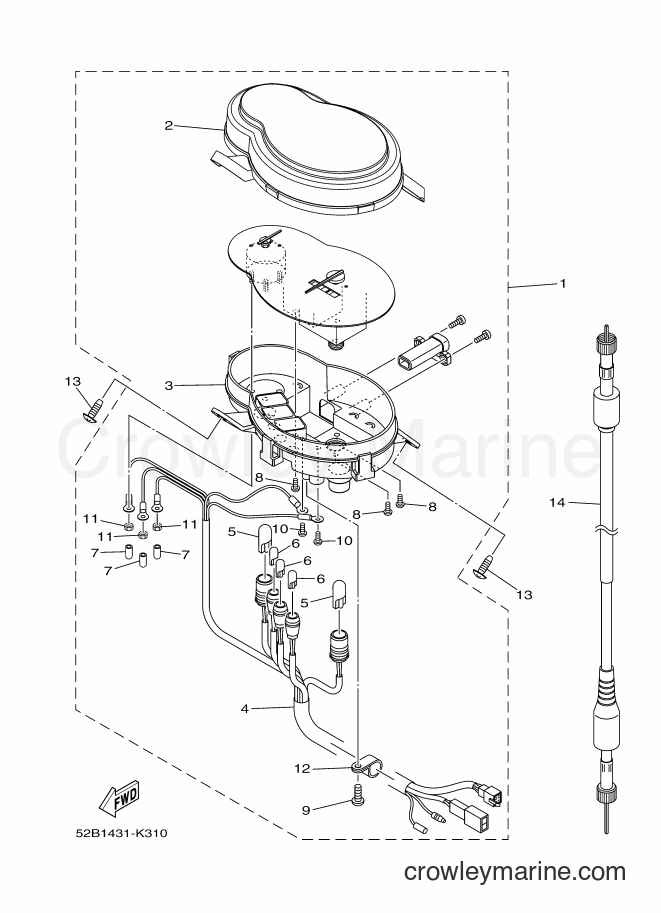

2012 Scooter XC115S - XC115S (52B4) [010] METER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors XC115S (52B4) [010] - METER
Change View:
1
Required: 1
SPEEDOMETER ASSY
Price unavailable
1
Required: 1
SPEEDOMETER ASSY
Price unavailable
2
Required: 1
. GLASS PLATE
Price unavailable
3
Required: 1
. CASE, METER LOWER
Price unavailable
4
Required: 1
. SOCKET CORD ASSY
Price unavailable
5
Required: 2
. BULB (12V-1.7W T10 BLACK HEAD)
Price unavailable
Bulb (14V-3W)
6
Yamaha Motors
Bulb (14V-3W)4CW-H3517-00-00
Required: 3
. BULB (14V-3W T6.5)
Cross Ship
Leaves in 2-5 days
$0.90
$0.76
You save $0.14
More details
7
Required: 3
. DAMPER
Price unavailable
8
Required: 3
. SCREW, SPECIAL
Price unavailable
Truss Screw
9
Yamaha Motors
Truss Screw97707-40012-00
Required: 1
. SCREW, TAPPING
Supersedes: 97702-40012-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
10
Required: 2
. SCREW, TAPPING
Price unavailable
11
Required: 3
. NUT
Price unavailable
12
Required: 1
. CLAMP
Price unavailable
14
Required: 1
SPEEDOMETER CABLE ASSY
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
