2012 Scooter XC115S - XC115S (52B4) [010] FRONT BRAKE CALIPER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

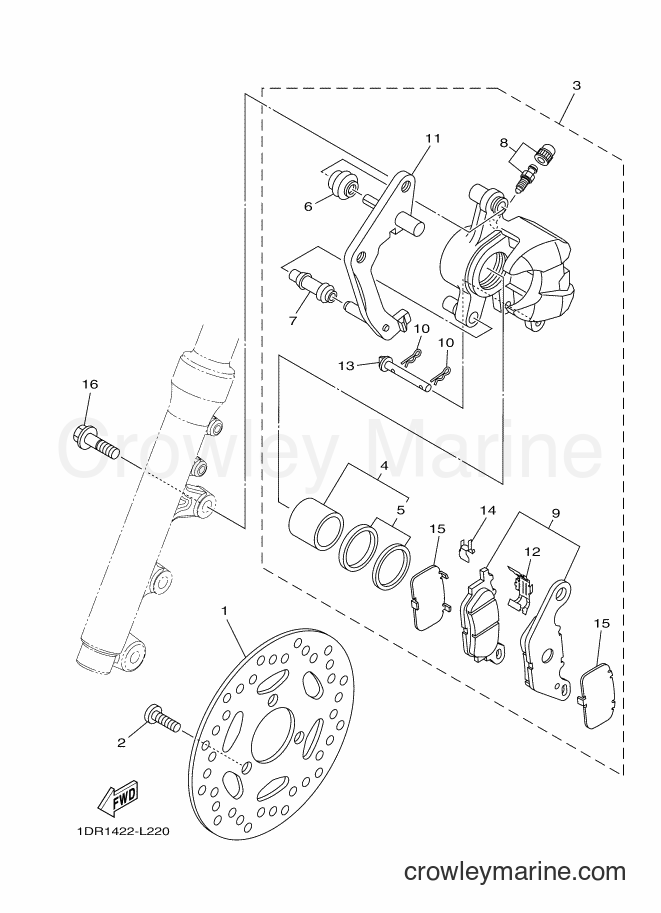

Yamaha Motors XC115S (52B4) [010] - FRONT BRAKE CALIPER
Change View:
1
Required: 1
DISK, BRAKE (RIGHT)
Price unavailable
3
Required: 1
CALIPER ASSY (RIGHT)
Price unavailable
4
Required: 1
. PISTON ASSY, CALIPER
Price unavailable
5
Required: 1
. . CALIPER SEAL KIT
Price unavailable
CALIPER BOOT (1S71)
6
Yamaha Motors
CALIPER BOOT (1S71)5YP-F5917-00-00
Required: 1
. BOOT, CALIPER
Cross Ship
Leaves in 2-5 days
$3.50
$2.98
You save $0.52
More details
Boot 2 (1S71)
7
Yamaha Motors
Boot 2 (1S71)5YP-F5937-00-00
Required: 1
. BOOT 2
Cross Ship
Leaves in 2-5 days
$3.70
$3.15
You save $0.56
More details
Bleed Screw Kit
8
Yamaha Motors
Bleed Screw Kit15B-W0048-00-00
Required: 1
. BLEED SCREW KIT
Supersedes: 4C9-W0048-00-00
Cross Ship
Leaves in 2-5 days
$21.99
$18.69
You save $3.30
More details
9
Required: 1
. BRAKE PAD KIT
Price unavailable
CLIP (1S71)
10
Yamaha Motors
CLIP (1S71)5YP-F5925-01-00
Required: 2
. CLIP
Cross Ship
Leaves in 2-5 days
$0.60
$0.51
You save $0.09
More details
11
Required: 1
. BRACKET, SUPPORT
Price unavailable
12
Required: 1
. SUPPORT, PAD
Price unavailable
Pad Pin
13
Yamaha Motors
Pad Pin5YP-F5924-00-00
Required: 1
. PIN, PAD
Cross Ship
Leaves in 2-5 days
$3.60
$3.06
You save $0.54
More details
14
Required: 1
. CLIP, PAD
Price unavailable
15
Required: 2
. SHIM, CALIPER
Price unavailable
16
Required: 2
BOLT, FLANGE
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
