All diagrams for this model

2012 Scooter XC115S - XC115S (52B5) [010] FRAME diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

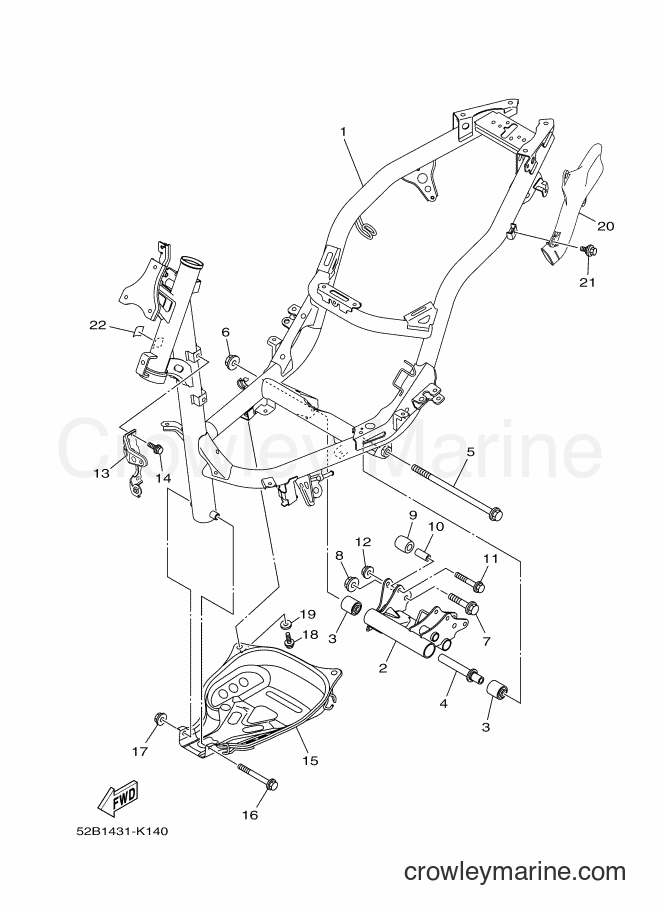

Yamaha Motors XC115S (52B5) [010] - FRAME
Change View:
1
Required: 1
FRAME COMP.
Price unavailable
2
Required: 1
ENGINE BRACKET COMP.
Price unavailable
3
Required: 2
BUSH 1
Price unavailable
4
Required: 1
SPACER
Price unavailable
5
Required: 1
BOLT, FLANGE
Price unavailable
Flange Bolt
7
Yamaha Motors
Flange Bolt90105-10030-00
Required: 2
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
9
Required: 2
STOPPER, MAIN STAND
Price unavailable
10
Required: 2
COLLAR
Price unavailable
11
Required: 2
BOLT, FLANGE
Price unavailable
Self Locking Nut
12
Yamaha Motors
Self Locking Nut90185-08169-00
Required: 2
NUT, SELF-LOCKING
Supersedes: 95607-08200-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
13
Required: 1
STAY 1
Price unavailable
Flange Bolt
14
Yamaha Motors
Flange Bolt95827-06012-00
Required: 2
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$1.40
$1.19
You save $0.21
More details
15
Required: 1
BRACKET, FRONT LOWER 1
Price unavailable
16
Required: 1
BOLT, FLANGE
Price unavailable
Self Locking Nut
17
Yamaha Motors
Self Locking Nut90185-08169-00
Required: 1
NUT, SELF-LOCKING
Supersedes: 95607-08200-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
Flange Bolt
18
Yamaha Motors
Flange Bolt95812-06012-00
Required: 2
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$1.15
$0.98
You save $0.17
More details
19
Required: 2
WASHER, PLATE
Price unavailable
20
Required: 1
DUCT 1
Price unavailable
BOLT
21
Yamaha Motors
BOLT90109-06220-00
Required: 3
BOLT
Cross Ship
Leaves in 2-5 days
$11.49
$9.77
You save $1.72
More details
22
Required: 1
EMBLEM 1
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
