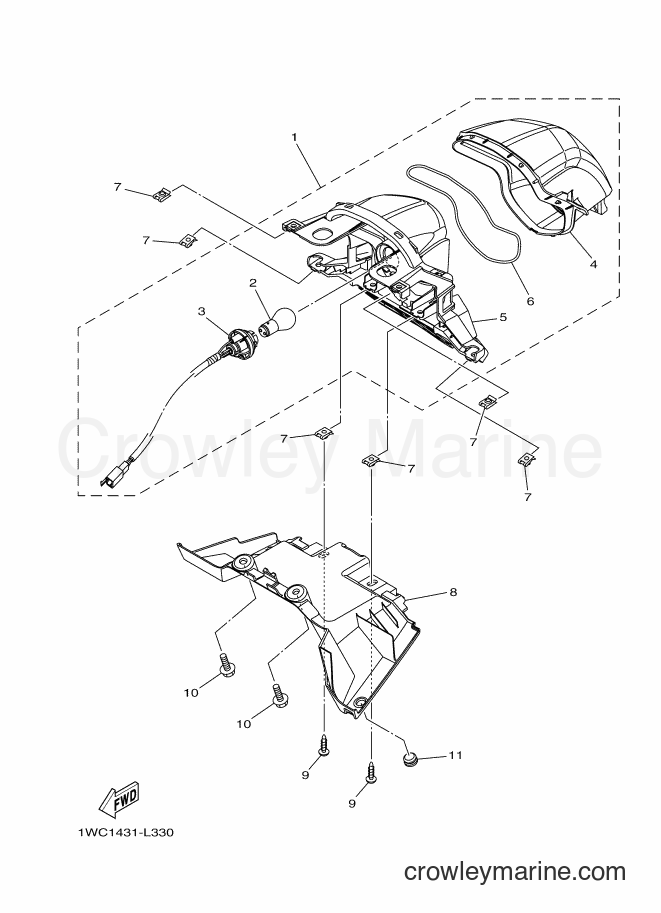

2012 Scooter XC115S - XC115S (1WC2) [010] TAILLIGHT diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors XC115S (1WC2) [010] - TAILLIGHT
Change View:
1
Required: 1
TAILLIGHT ASSY
Price unavailable
2
Required: 1
. BULB (12V-21/5W)
Price unavailable
3
Required: 1
. CORD ASSY
Price unavailable
4
Required: 1
. LENS, TAILLIGHT
Price unavailable
5
Required: 1
. BASE, TAILLIGHT
Price unavailable
6
Required: 1
. GASKET, TAIL LENS
Price unavailable
8
Required: 1
COVER, TAILLIGHT
Price unavailable
Truss Screw
9
Yamaha Motors
Truss Screw97707-50014-00
Required: 2
SCREW, TRUSS HEAD TAPPING
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
Bolt with Washer
10
Yamaha Motors
Bolt with Washer90119-06137-00
Required: 2
BOLT, WITH WASHER
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
11
Required: 1
PLUG, BLIND
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
