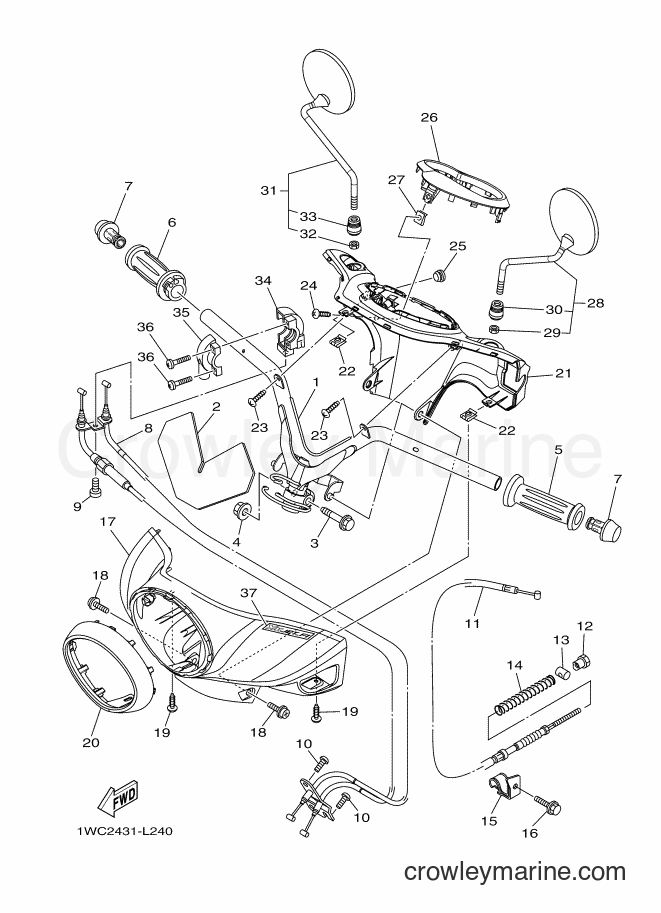

2012 Scooter XC115S - XC115S (1WC2) [010] STEERING HANDLE & CABLE diagram
![Yamaha Motors XC115S (1WC2) [010] - STEERING HANDLE & CABLE](https://cdn.crowleymarine.com/yamaha/gCtlPWvt.png)
1
Required: 1
HANDLE COMP.
Price unavailable
2
Required: 1
DAMPER
Price unavailable
$8.07
You save $1.42
4
Required: 1
NUT, SELF-LOCKING
Price unavailable
5
Required: 1
GRIP (BLACK)
Price unavailable
6
Required: 1
GRIP ASSY (BLACK)
Price unavailable
7
Required: 2
END, GRIP (0660,SM1)
Price unavailable
8
Required: 1
THROTTLE CABLE ASSY
Price unavailable
9
Yamaha Motors
SCREW (4JY)92017-06010-00
Required: 1
BOLT, BUTTON HEAD
$4.67
You save $0.82
10
Yamaha Motors
Button Bolt92017-05012-00
Required: 2
BOLT, BUTTON HEAD
$3.27
You save $0.58
11
Required: 1
CABLE, BRAKE
Price unavailable
$8.07
You save $1.42
In stock
Only 4 remaining
$8.07
You save $1.42
14
Required: 1
SPRING, COMPRESSION
Price unavailable
15
Required: 1
HOLDER 2
Price unavailable
16
Yamaha Motors
Flange Bolt95817-06014-00
Required: 1
BOLT, FLANGE
Supersedes: 95807-06014-00
In stock
Only 1 remaining
$2.38
You save $0.42
17
Required: 1
COVER,HAND,UPPER1(0740,DNPM1)
Price unavailable
18
Required: 2
SCREW, WITH WASHER
Price unavailable
19
Yamaha Motors
Truss Screw97707-50014-00
Required: 2
SCREW, TRUSS HEAD TAPPING
$8.07
You save $1.42
20
Required: 1
RIM, HEADLIGHT
Price unavailable
21
Required: 1
COVER,HAND,UPPER 2(1124,WM6)
Price unavailable
22
Yamaha Motors
Spring Nut90183-05042-00
Required: 2
NUT, SPRING
Supersedes: 90183-05807-00
In stock
Only 1 remaining
$0.85
You save $0.15
23
Yamaha Motors
Truss Head Tapping Screw97707-50016-00
Required: 2
SCREW, TRUSS HEAD TAPPING
In stock
Only 4 remaining
$1.57
You save $0.28
24
Yamaha Motors
Truss Screw97707-50014-00
Required: 1
SCREW, TRUSS HEAD TAPPING
$8.07
You save $1.42
25
Required: 1
PLUG, BLIND
Price unavailable
26
Required: 1
COVER, METER (0660,SMX)
Price unavailable
27
Yamaha Motors
Spring Nut90183-05042-00
Required: 1
NUT, SPRING
Supersedes: 90183-05807-00
In stock
Only 1 remaining
$0.85
You save $0.15
28
Required: 1
REAR VIEW MIRROR ASSY (LEFT)
Price unavailable
29
Yamaha Motors
Nut95317-10600-00
Required: 1
. NUT
Supersedes: 95307-10600-00
$3.44
You save $0.61
30
Required: 1
. BOOT 1
Price unavailable
31
Required: 1
REAR VIEW MIRROR ASSY (RIGHT)
Price unavailable
32
Required: 1
. NUT
Price unavailable
33
Required: 1
. BOOT 1
Price unavailable
34
Required: 1
CAP, GRIP UPPER
Price unavailable
35
Required: 1
CAP, GRIP UNDER
Price unavailable
36
Yamaha Motors
Pan Head Screw98517-05020-00
Required: 2
SCREW, PAN HEAD
Supersedes: 98507-05020-00
$1.49
You save $0.26
37
Required: 1
EMBLEM
Price unavailable
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
