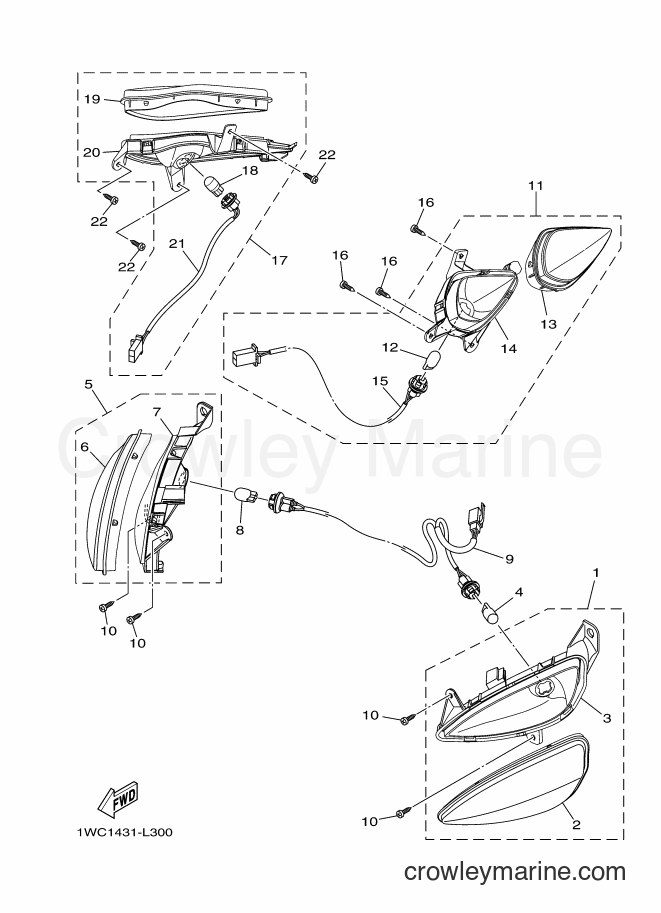

2012 Scooter XC115S - XC115S (1WC2) [010] FLASHER LIGHT diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors XC115S (1WC2) [010] - FLASHER LIGHT
Change View:
1
Required: 1
FRONT FLASHER LIGHT ASSY 1
Price unavailable
2
Required: 1
. LENS, FLASHER
Price unavailable
3
Required: 1
. BASE, FLASHER 1 (BLACK)
Price unavailable
4
Required: 1
BULB (12V-10W) AMBER
Price unavailable
5
Required: 1
FRONT FLASHER LIGHT ASSY 2
Price unavailable
6
Required: 1
. LENS, FLASHER 2
Price unavailable
7
Required: 1
. BASE, FLASHER 2 (BLACK)
Price unavailable
8
Required: 1
BULB (12V-10W) AMBER
Price unavailable
9
Required: 1
CORD ASSY
Price unavailable
Truss Screw
10
Yamaha Motors
Truss Screw97707-50014-00
Required: 4
SCREW, TRUSS HEAD TAPPING
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
11
Required: 1
REAR FLASHER LIGHT ASSY 1
Price unavailable
12
Required: 1
. BULB (12V-10W) AMBER
Price unavailable
13
Required: 1
. LENS, FLASHER
Price unavailable
14
Required: 1
. BASE, FLASHER 3
Price unavailable
15
Required: 1
. CORD ASS'Y
Price unavailable
17
Required: 1
REAR FLASHER LIGHT ASSY 2
Price unavailable
18
Required: 1
. BULB (12V-10W) AMBER
Price unavailable
19
Required: 1
. LENS, FLASHER 2
Price unavailable
20
Required: 1
. BASE, FLASHER 4
Price unavailable
21
Required: 1
. CORD ASS'Y
Price unavailable
Truss Screw
22
Yamaha Motors
Truss Screw97707-50014-00
Required: 3
SCREW, TRUSS HEAD TAPPING
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
