2012 Scooter XC100N - XC100N (1DW2) [010] VALVE diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

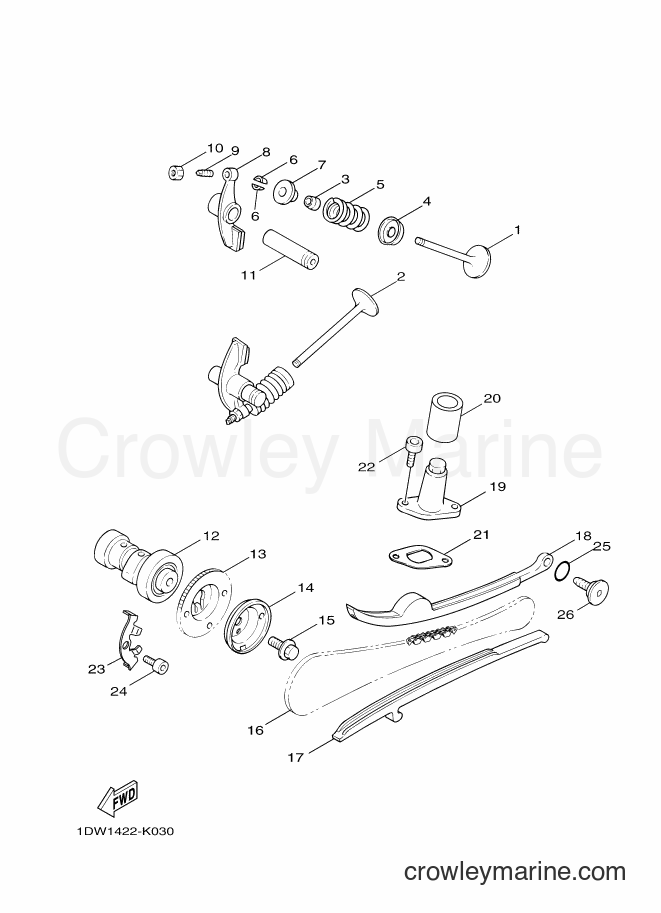

Yamaha Motors XC100N (1DW2) [010] - VALVE
Change View:
1
Required: 1
VALVE, INTAKE
Price unavailable
2
Required: 1
VALVE, EXHAUST
Price unavailable
3
Required: 2
SEAL, VALVE STEM
Price unavailable
4
Required: 2
SEAT, VALVE SPRING
Price unavailable
5
Required: 2
SPRING, VALVE INNER
Price unavailable
6
Required: 4
LOCK, VALVE SPRING RETAINER
Price unavailable
7
Required: 2
RETAINER, VALVE SPRING
Price unavailable
8
Required: 2
ARM, VALVE ROCKER
Price unavailable
VALVE ADJUSTMENT SCREW
9
Yamaha Motors
VALVE ADJUSTMENT SCREW5FM-E2159-00-00
Required: 2
SCREW, VALVE ADJUSTING
Cross Ship
Leaves in 2-5 days
$2.50
$2.13
You save $0.38
More details
Nut
10
Yamaha Motors
Nut90170-05800-00
Required: 2
NUT
Cross Ship
Leaves in 2-5 days
$1.40
$1.19
You save $0.21
More details
11
Required: 2
SHAFT, ROCKER 2
Price unavailable
12
Required: 1
CAMSHAFT ASSY 1
Price unavailable
13
Required: 1
SPROCKET, CAM CHAIN
Price unavailable
14
Required: 1
PLATE, BREATHER 2
Price unavailable
Flange Bolt
15
Yamaha Motors
Flange Bolt95817-08016-00
Required: 1
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$5.49
$4.67
You save $0.82
More details
16
Required: 1
CHAIN
Price unavailable
17
Required: 1
GUIDE, STOPPER 1
Price unavailable
18
Required: 1
GUIDE, STOPPER 2
Price unavailable
Tensioner Assembly - CA
19
Yamaha Motors
Tensioner Assembly - CA4CW-E2210-01-00
Required: 1
TENSIONER ASSY, CAM CHAIN
Cross Ship
Leaves in 2-5 days
$14.49
$19.97
You save $-5.48
More details
20
Required: 1
DAMPER
Price unavailable
Tensioner Gasket
21
Yamaha Motors
Tensioner Gasket4DH-E2213-01-00
Required: 1
GASKET, TENSIONER CASE
Cross Ship
Leaves in 2-5 days
$1.15
$0.98
You save $0.17
More details
Bolt (4MY)
22
Yamaha Motors
Bolt (4MY)91317-06016-00
Required: 2
BOLT
Cross Ship
Leaves in 2-5 days
$1.25
$1.06
You save $0.19
More details
23
Required: 1
PLATE
Price unavailable
Bolt (4MY)
24
Yamaha Motors
Bolt (4MY)91317-06012-00
Required: 1
BOLT
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
O-Ring
25
Yamaha Motors
O-Ring93210-15171-00
Required: 1
O-RING
Supersedes: 93210-15862-00
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
26
Required: 1
BOLT
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
