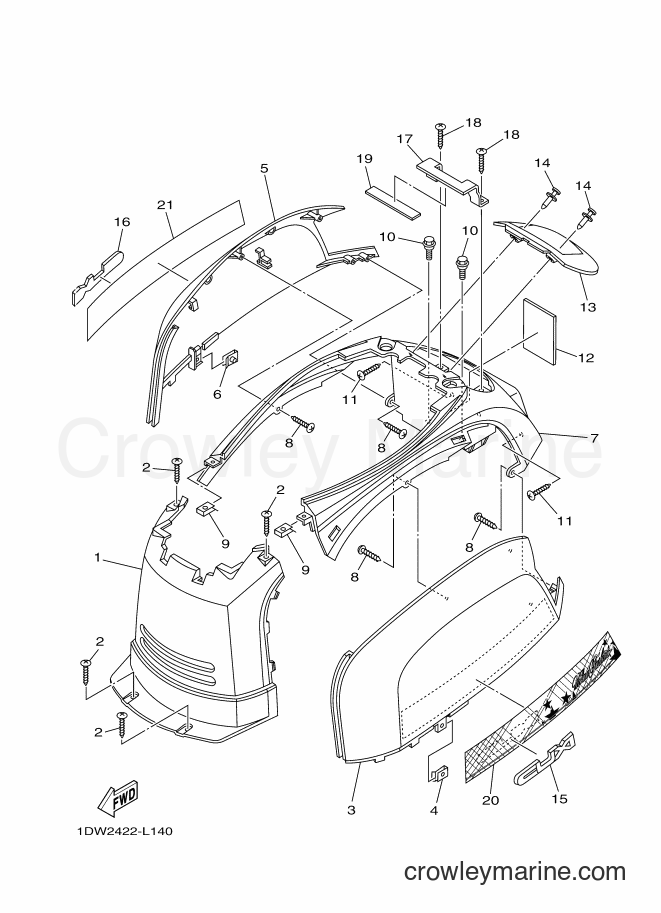

2012 Scooter XC100N - XC100N (1DW2) [010] SIDE COVER diagram
![Yamaha Motors XC100N (1DW2) [010] - SIDE COVER](https://cdn.crowleymarine.com/yamaha/eu2w27SH.png)
1
Required: 1
COVER, SIDE 1
Price unavailable
2
Yamaha Motors
Truss Head Tapping Screw97707-50016-00
Required: 4
SCREW, TRUSS HEAD TAPPING
In stock
Only 4 remaining
$1.57
You save $0.28
3
Required: 1
COVER, SIDE 2
Price unavailable
4
Required: 1
NUT, SPRING
Price unavailable
5
Required: 1
COVER, SIDE 3
Price unavailable
6
Required: 1
NUT, SPRING
Price unavailable
7
Required: 1
COVER, SIDE 4
Price unavailable
8
Yamaha Motors
Truss Head Tapping Screw97707-50016-00
Required: 4
SCREW, TRUSS HEAD TAPPING
In stock
Only 4 remaining
$1.57
You save $0.28
9
Required: 2
NUT, SPRING
Price unavailable
$2.63
You save $0.47
11
Yamaha Motors
Truss Head Tapping Screw97707-50016-00
Required: 2
SCREW, TRUSS HEAD TAPPING
In stock
Only 4 remaining
$1.57
You save $0.28
12
Required: 1
DAMPER, PLATE
Price unavailable
13
Required: 1
COVER, BATTERY
Price unavailable
$1.87
You save $0.33
15
Required: 1
EMBLEM 3D
Price unavailable
16
Required: 1
EMBLEM 3D
Price unavailable
17
Required: 1
BRACKET 1
Price unavailable
18
Yamaha Motors
Truss Head Tapping Screw97707-50016-00
Required: 2
SCREW, TRUSS HEAD TAPPING
In stock
Only 4 remaining
$1.57
You save $0.28
19
Required: 1
DAMPER
Price unavailable
20
Required: 1
GRAPHIC 7
Price unavailable
21
Required: 1
GRAPHIC 8
Price unavailable
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
