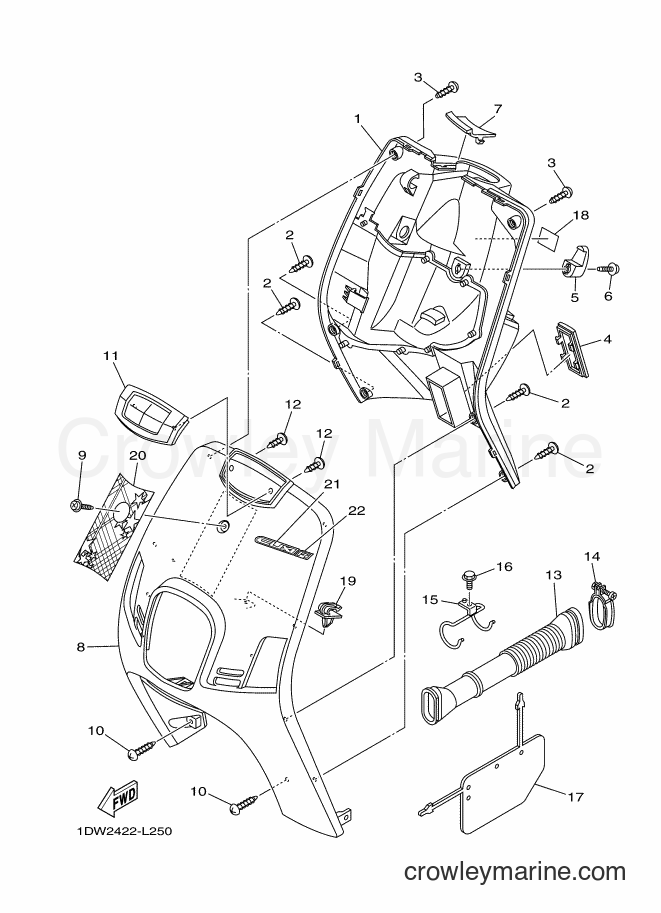

2012 Scooter XC100N - XC100N (1DW2) [010] LEG SHIELD diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors XC100N (1DW2) [010] - LEG SHIELD
Change View:
1
Required: 1
LEG SHIELD ASSY
Price unavailable
Tapping Screw
3
Yamaha Motors
Tapping Screw90169-05001-00
Required: 2
TAPPING SCREW
Cross Ship
Leaves in 2-5 days
$1.05
$0.89
You save $0.16
More details
4
Required: 1
CAP
Price unavailable
5
Required: 1
HOOK 1
Price unavailable
Screw with Washer
6
Yamaha Motors
Screw with Washer90159-06067-00
Required: 1
SCREW, WITH WASHER
Supersedes: 90159-06822-00
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
7
Required: 1
PLATE
Price unavailable
8
Required: 1
LEG SHIELD 1
Price unavailable
Screw With Washer
9
Yamaha Motors
Screw With Washer90159-06812-00
Required: 1
SCREW, WITH WASHER
Cross Ship
Leaves in 2-5 days
$2.25
$1.91
You save $0.34
More details
11
Required: 1
PANEL ASSY
Price unavailable
Truss Screw
12
Yamaha Motors
Truss Screw97707-50012-00
Required: 2
SCREW, TRUSS HEAD TAPPING
Cross Ship
Leaves in 2-5 days
$4.63
$3.94
You save $0.69
More details
13
Required: 1
DUCT, AIR
Price unavailable
14
Required: 1
CLAMP, HOSE
Price unavailable
15
Required: 1
HOLDER, CABLE
Price unavailable
BOLT WITH WASHER
16
Yamaha Motors
BOLT WITH WASHER97507-05510-00
Required: 1
BOLT, WITH WASHER
Cross Ship
Leaves in 2-5 days
$0.45
$0.38
You save $0.07
More details
17
Required: 1
FLAP, FRONT FENDER
Price unavailable
18
Required: 1
LABEL, WARNING
Price unavailable
19
Required: 1
CLAMP
Price unavailable
20
Required: 1
GRAPHIC 2
Price unavailable
21
Required: 1
EMBLEM
Price unavailable
22
Required: 1
EMBLEM
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
