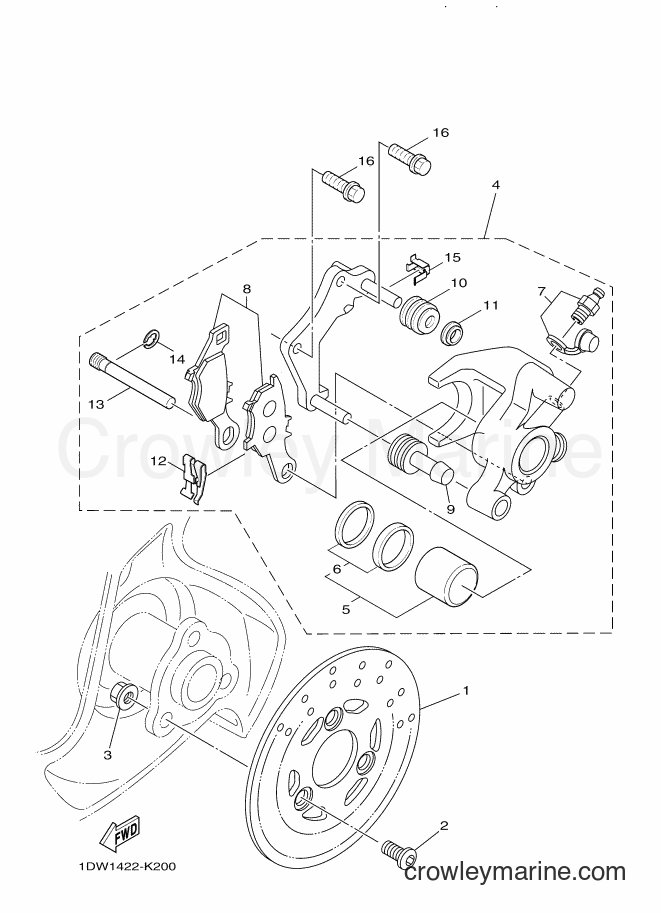

2012 Scooter XC100N - XC100N (1DW2) [010] FRONT BRAKE CALIPER diagram
![Yamaha Motors XC100N (1DW2) [010] - FRONT BRAKE CALIPER](https://cdn.crowleymarine.com/yamaha/yq9P0Q7E.png)
1
Required: 1
DISC, BRAKE (LEFT)
Price unavailable
-50%
2
Yamaha Motors
HEXAGON SOCKET BOLT90111-10808-00
Required: 3
BOLT, HEXAGON SOCKET HEAD
Supersedes: 90110-10811-00
In stock
Only 1 remaining
$1.18
You save $1.18
-50%
In stock
Only 3 remaining
$1.07
You save $1.07
4
Required: 1
CALIPER ASSY (LEFT)
Price unavailable
5
Yamaha Motors
Caliper Piston Assembly5SU-W0057-00-00
Required: 1
. PISTON ASSY, CALIPER
$14.87
You save $2.62
-50%
6
Yamaha Motors
Caliper Seal Kit5SU-W0047-00-00
Required: 1
. . CALIPER SEAL KIT
In stock
Only 1 remaining
$3.00
You save $3.00
-50%
7
Yamaha Motors
Bleed Screw Kit5SU-W0048-00-00
Required: 1
. BLEED SCREW KIT
In stock
Only 1 remaining
$1.18
You save $1.18
8
Required: 1
. BRAKE PAD KIT
Price unavailable
9
Yamaha Motors
Caliper Boot5SU-F5917-00-00
Required: 1
. BOOT, CALIPER
$1.36
You save $0.24
$1.74
You save $0.31
$1.32
You save $0.23
-50%
12
Yamaha Motors
PAD SUPPORT5SU-F5919-00-00
Required: 1
. SUPPORT, PAD
In stock
Only 1 remaining
$1.38
You save $1.38
$2.04
You save $0.36
$0.34
You save $0.06
15
Required: 1
. CLIP, PAD
Price unavailable
-50%
16
Yamaha Motors
Flange Bolt95817-08020-00
Required: 2
BOLT, FLANGE
Supersedes: 95827-08020-00
In stock
Only 1 remaining
$5.25
You save $5.25
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
