2012 Scooter XC100E - XC100E (1RS1) [010] TRANSMISSION diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

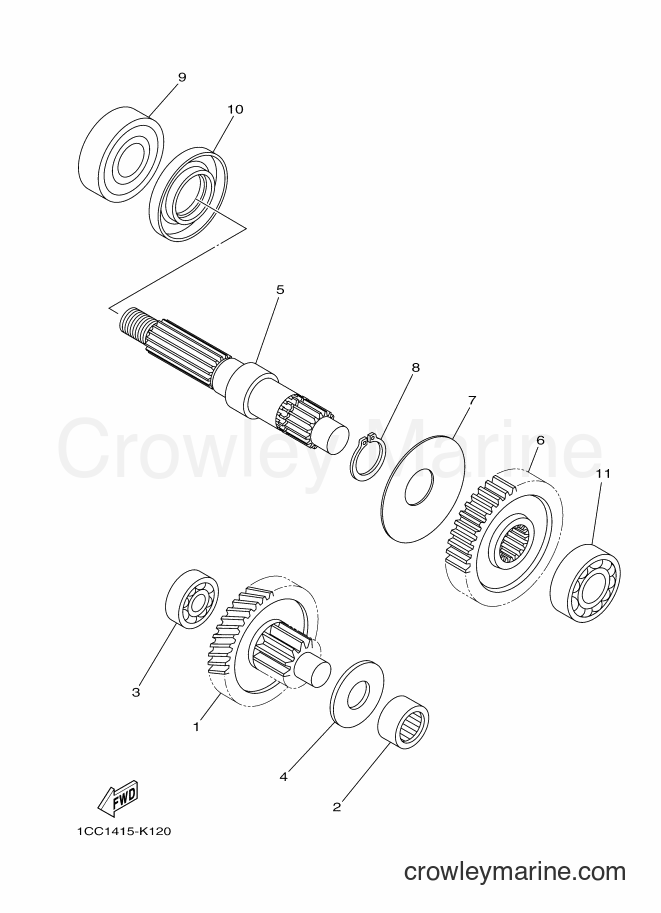

Yamaha Motors XC100E (1RS1) [010] - TRANSMISSION
Change View:
1
Required: 1
MAIN AXLE COMP.
Price unavailable
2
Required: 1
BEARING
Price unavailable
3
Required: 1
BEARING
Price unavailable
4
Required: 1
WASHER, PLATE
Price unavailable
5
Required: 1
AXLE, DRIVE
Price unavailable
6
Required: 1
GEAR, 1ST WHEEL (39T)
Price unavailable
7
Required: 1
WASHER, CONICAL SPRING
Price unavailable
Circle Clip
8
Yamaha Motors
Circle Clip93410-20823-00
Required: 1
CIRCLIP
Cross Ship
Leaves in 2-5 days
$0.35
$2.71
You save $-2.36
More details
9
Required: 1
BEARING
Price unavailable
Oil Seal
10
Yamaha Motors
Oil Seal93102-26852-00
Required: 1
OIL SEAL
Cross Ship
Leaves in 2-5 days
$1.30
$1.10
You save $0.20
More details
11
Required: 1
BEARING
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
