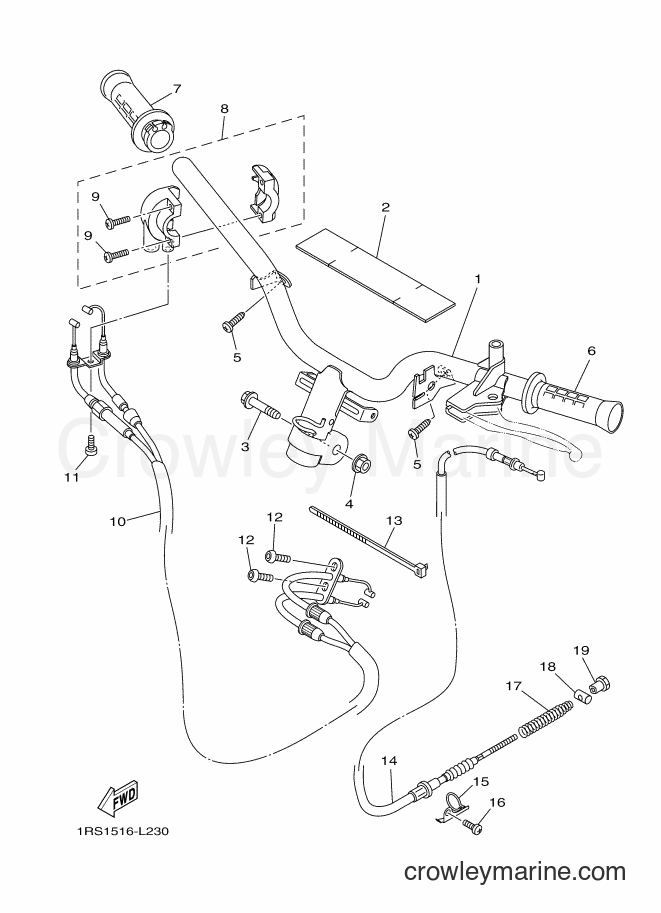

2012 Scooter XC100E - XC100E (1RS1) [010] STEERING HANDLE & CABLE diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors XC100E (1RS1) [010] - STEERING HANDLE & CABLE
Change View:
1
Required: 1
HANDLE COMP.
Price unavailable
2
Required: 1
DAMPER
Price unavailable
3
Required: 1
BOLT, FLANGE
Price unavailable
Self Locking Nut
4
Yamaha Motors
Self Locking Nut95602-10200-00
Required: 1
NUT, U FLANGE
Cross Ship
Leaves in 2-5 days
$2.70
$2.29
You save $0.41
More details
Tapping Screw
5
Yamaha Motors
Tapping Screw97702-50016-00
Required: 2
SCREW, TAPPING
Cross Ship
Leaves in 2-5 days
$2.60
$2.21
You save $0.39
More details
6
Required: 1
GRIP
Price unavailable
7
Required: 1
GRIP ASSY
Price unavailable
8
Required: 1
CAP GRIP ASSY
Price unavailable
Pan Head Screw
9
Yamaha Motors
Pan Head Screw98517-05020-00
Required: 2
. SCREW, PAN HEAD
Supersedes: 98502-05020-00
Cross Ship
Leaves in 2-5 days
$1.75
$1.49
You save $0.26
More details
10
Required: 1
THROTTLE CABLE ASSY
Price unavailable
Button head bolt
12
Yamaha Motors
Button head bolt92012-05010-00
Required: 2
BOLT, BUTTON HEAD
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
13
Required: 1
CLAMP
Price unavailable
14
Required: 1
CABLE, BRAKE
Price unavailable
15
Required: 1
HOLDER, WIRE
Price unavailable
Screw
16
Yamaha Motors
Screw98517-06012-00
Required: 1
SCREW, PAN HEAD
Supersedes: 98502-06012-00
Cross Ship
Leaves in 2-5 days
$4.10
$3.49
You save $0.62
More details
Compression Spring
17
Yamaha Motors
Compression Spring90501-16831-00
Required: 1
SPRING, COMPRESSION
Cross Ship
Leaves in 2-5 days
$2.35
$2.00
You save $0.35
More details
PIN
18
Yamaha Motors
PIN90249-12806-00
Required: 1
PIN
Cross Ship
Leaves in 2-5 days
$1.20
$1.02
You save $0.18
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
