All diagrams for this model

2012 Scooter XC100E - XC100E (1RS1) [010] SIDE COVER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

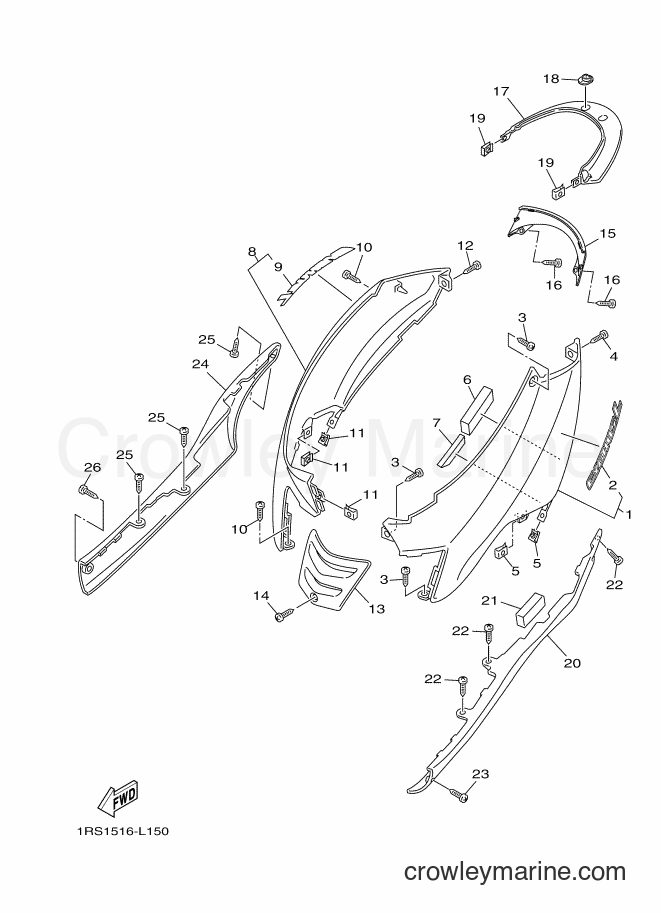

Yamaha Motors XC100E (1RS1) [010] - SIDE COVER
Change View:
1
Required: 1
COVER, SIDE 1
Price unavailable
2
Required: 1
. EMBLEM 3D
Price unavailable
Truss Screw
3
Yamaha Motors
Truss Screw97707-50012-00
Required: 3
SCREW, TAPPING
Supersedes: 97702-50012-00
Cross Ship
Leaves in 2-5 days
$4.63
$3.94
You save $0.69
More details
Tapping Screw
4
Yamaha Motors
Tapping Screw97702-50016-00
Required: 1
SCREW, TAPPING
Cross Ship
Leaves in 2-5 days
$2.60
$2.21
You save $0.39
More details
5
Required: 2
NUT, SPRING
Price unavailable
6
Required: 1
DAMPER
Price unavailable
7
Required: 1
DAMPER
Price unavailable
8
Required: 1
COVER, SIDE 2
Price unavailable
9
Required: 1
. EMBLEM 3D
Price unavailable
Truss Screw
10
Yamaha Motors
Truss Screw97707-50012-00
Required: 2
SCREW, TAPPING
Supersedes: 97702-50012-00
Cross Ship
Leaves in 2-5 days
$4.63
$3.94
You save $0.69
More details
11
Required: 3
NUT, SPRING
Price unavailable
Tapping Screw
12
Yamaha Motors
Tapping Screw97702-50016-00
Required: 1
SCREW, TAPPING
Cross Ship
Leaves in 2-5 days
$2.60
$2.21
You save $0.39
More details
13
Required: 1
COVER, SIDE 3
Price unavailable
Truss Screw
14
Yamaha Motors
Truss Screw97707-50012-00
Required: 1
SCREW, TAPPING
Supersedes: 97702-50012-00
Cross Ship
Leaves in 2-5 days
$4.63
$3.94
You save $0.69
More details
15
Required: 1
COVER, SIDE 4
Price unavailable
Truss Screw
16
Yamaha Motors
Truss Screw97707-50012-00
Required: 2
SCREW, TAPPING
Supersedes: 97702-50012-00
Cross Ship
Leaves in 2-5 days
$4.63
$3.94
You save $0.69
More details
17
Required: 1
COVER, SIDE 5
Price unavailable
18
Required: 2
GROMMET
Price unavailable
19
Required: 2
NUT, SPRING
Price unavailable
20
Required: 1
MOLE, SIDE COVER 1
Price unavailable
21
Required: 1
DAMPER
Price unavailable
Truss Screw
22
Yamaha Motors
Truss Screw97707-50012-00
Required: 3
SCREW, TAPPING
Supersedes: 97702-50012-00
Cross Ship
Leaves in 2-5 days
$4.63
$3.94
You save $0.69
More details
Tapping Screw
23
Yamaha Motors
Tapping Screw97702-50016-00
Required: 1
SCREW, TAPPING
Cross Ship
Leaves in 2-5 days
$2.60
$2.21
You save $0.39
More details
24
Required: 1
MOLE, SIDE COVER 2
Price unavailable
Truss Screw
25
Yamaha Motors
Truss Screw97707-50012-00
Required: 3
SCREW, TAPPING
Supersedes: 97702-50012-00
Cross Ship
Leaves in 2-5 days
$4.63
$3.94
You save $0.69
More details
Tapping Screw
26
Yamaha Motors
Tapping Screw97702-50016-00
Required: 1
SCREW, TAPPING
Cross Ship
Leaves in 2-5 days
$2.60
$2.21
You save $0.39
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
