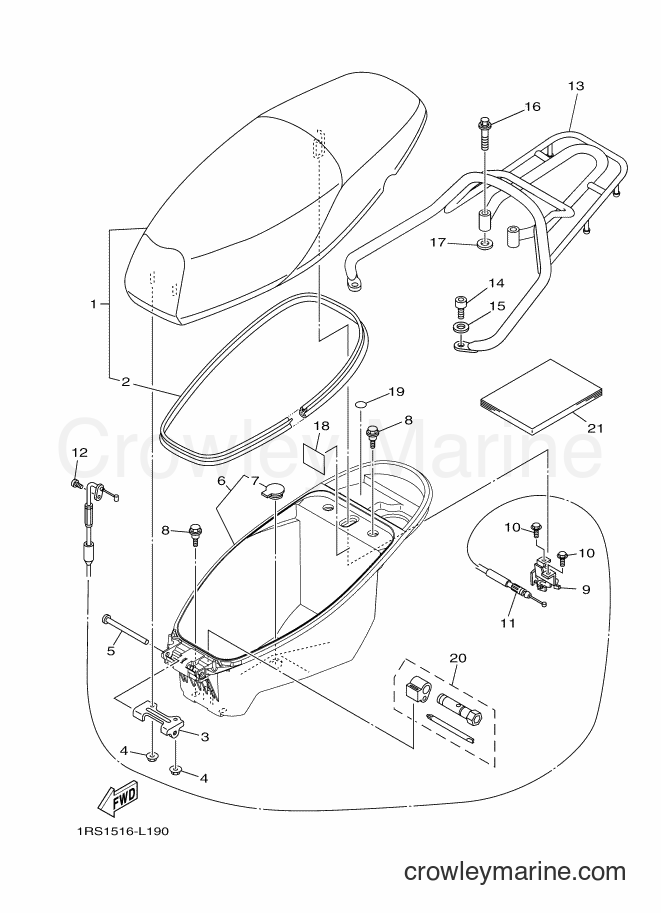

2012 Scooter XC100E - XC100E (1RS1) [010] SEAT diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors XC100E (1RS1) [010] - SEAT
Change View:
1
Required: 1
DOUBLE SEAT ASSY
Price unavailable
2
Required: 1
. SEAL
Price unavailable
3
Required: 1
HINGE, SEAT
Price unavailable
5
Required: 1
PIN
Price unavailable
6
Required: 1
BOX ASSY
Price unavailable
7
Required: 1
. GROMMET
Price unavailable
8
Required: 4
BOLT
Price unavailable
9
Required: 1
SEAT LOCK ASSY
Price unavailable
95817-06010-00
10
Yamaha Motors
95817-06010-0095812-06010-00
Required: 2
BOLT, FLANGE
Supersedes: 95802-06010-00
Cross Ship
Leaves in 2-5 days
$3.20
$2.72
You save $0.48
More details
11
Required: 1
CABLE, SEAT LOCK
Price unavailable
Pan Head Screw
12
Yamaha Motors
Pan Head Screw98517-05012-00
Required: 1
SCREW, PAN HEAD
Supersedes: 98502-05012-00
Cross Ship
Leaves in 2-5 days
$5.49
$4.67
You save $0.82
More details
13
Required: 1
CARRIER, REAR
Price unavailable
91316-08016-00
14
Yamaha Motors
91316-08016-0091312-08016-00
Required: 2
BOLT
Cross Ship
Leaves in 2-5 days
$4.05
$3.44
You save $0.61
More details
16
Required: 2
BOLT
Price unavailable
18
Required: 1
LABEL
Price unavailable
19
Required: 1
LABEL, CAUTION
Price unavailable
20
Required: 1
TOOL KIT
Price unavailable
21
Required: 1
MANUAL,OWNER'S
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
