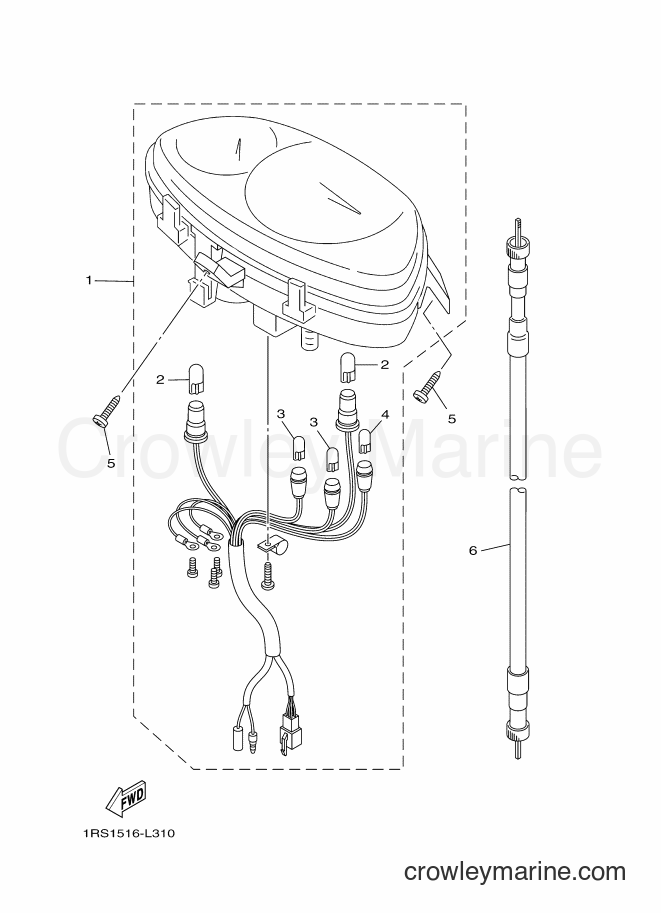

2012 Scooter XC100E - XC100E (1RS1) [010] METER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors XC100E (1RS1) [010] - METER
Change View:
1
Required: 1
SPEEDOMETER ASSY
Price unavailable
2
Required: 2
. BULB (T10 12V-3.4W)
Price unavailable
3
Required: 2
. BULB (T6.5 12V-1.7W)
Price unavailable
4
Required: 1
. BULB (T6.5 12V-3.4W)
Price unavailable
Tapping Screw
5
Yamaha Motors
Tapping Screw97702-50016-00
Required: 3
SCREW, TAPPING
Cross Ship
Leaves in 2-5 days
$2.60
$2.21
You save $0.39
More details
6
Required: 1
SPEEDOMETER CABLE ASSY
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
