2012 Scooter XC100E - XC100E (1RS1) [010] HEADLIGHT diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

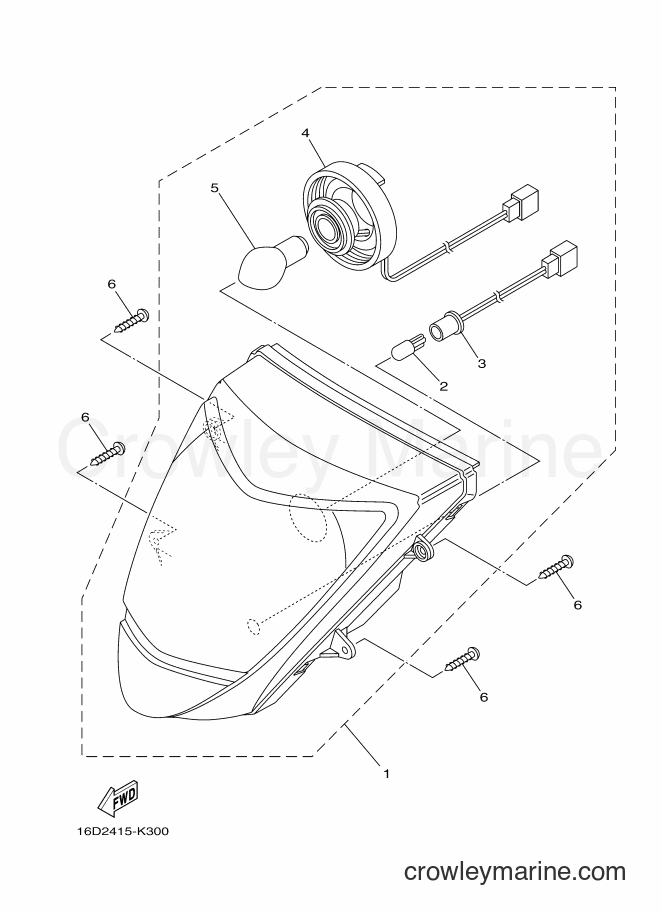

Yamaha Motors XC100E (1RS1) [010] - HEADLIGHT
Change View:
1
Required: 1
HEADLIGHT UNIT ASSY
Price unavailable
BULB (12V-3W) W3W
2
Yamaha Motors
BULB (12V-3W) W3W4P7-H4347-00-00
Required: 1
. BULB (12V-3W) W3W
Cross Ship
Leaves in 2-5 days
$2.40
$2.04
You save $0.36
More details
3
Required: 1
. CORD ASSY
Price unavailable
4
Required: 1
. COVER
Price unavailable
5
Required: 1
. BULB, HEADLIGHT (12V-35/35W)
Price unavailable
Tapping Screw
6
Yamaha Motors
Tapping Screw97702-50016-00
Required: 4
SCREW, TAPPING
Cross Ship
Leaves in 2-5 days
$2.60
$2.21
You save $0.39
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
