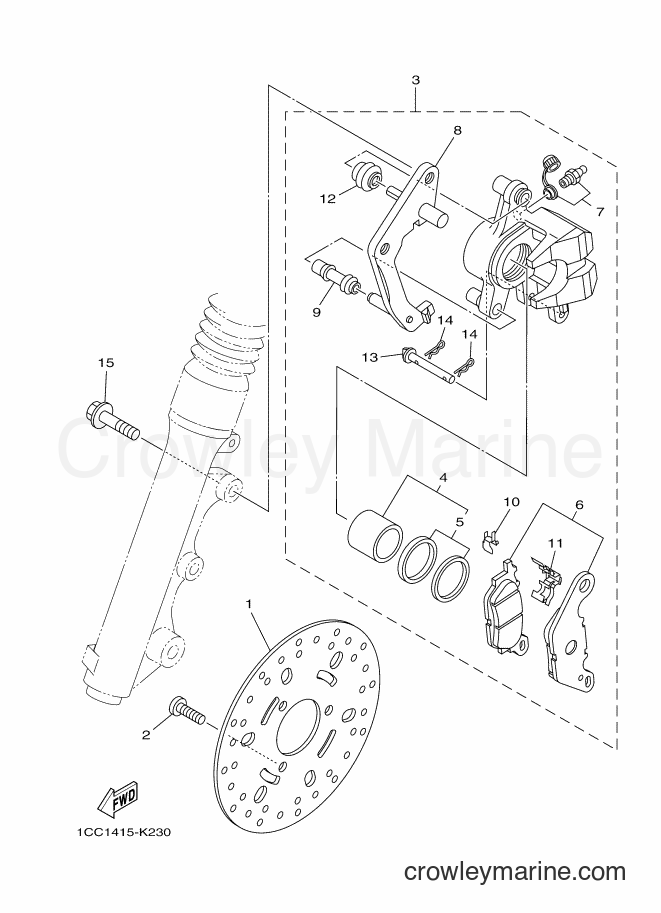

2012 Scooter XC100E - XC100E (1RS1) [010] FRONT BRAKE CALIPER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors XC100E (1RS1) [010] - FRONT BRAKE CALIPER
Change View:
1
Required: 1
DISK, BRAKE (RIGHT)
Price unavailable
1
Required: 1
DISK, BRAKE (RIGHT)
Price unavailable
Screw (M8 X 40)
2
Yamaha Motors
Screw (M8 X 40)90111-08834-00
Required: 3
SCREW
Supersedes: 90149-08814-00
Cross Ship
Leaves in 2-5 days
$1.90
$1.61
You save $0.28
More details
3
Required: 1
CALIPER ASSY (RIGHT)
Price unavailable
4
Required: 1
. PISTON ASSY, CALIPER
Price unavailable
5
Required: 1
. . CALIPER SEAL KIT
Price unavailable
6
Required: 1
. BRAKE PAD KIT
Price unavailable
7
Required: 1
. BLEED SCREW KIT
Price unavailable
8
Required: 1
. BRACKET, SUPPORT
Price unavailable
9
Required: 1
. BOOT 2
Price unavailable
10
Required: 1
. CLIP, PAD
Price unavailable
11
Required: 1
. SUPPORT, PAD
Price unavailable
12
Required: 1
. BOOT, CALIPER
Price unavailable
13
Required: 1
. PIN, PAD
Price unavailable
14
Required: 2
. CLIP
Price unavailable
Flange Bolt
15
Yamaha Motors
Flange Bolt95022-10030-00
Required: 2
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
