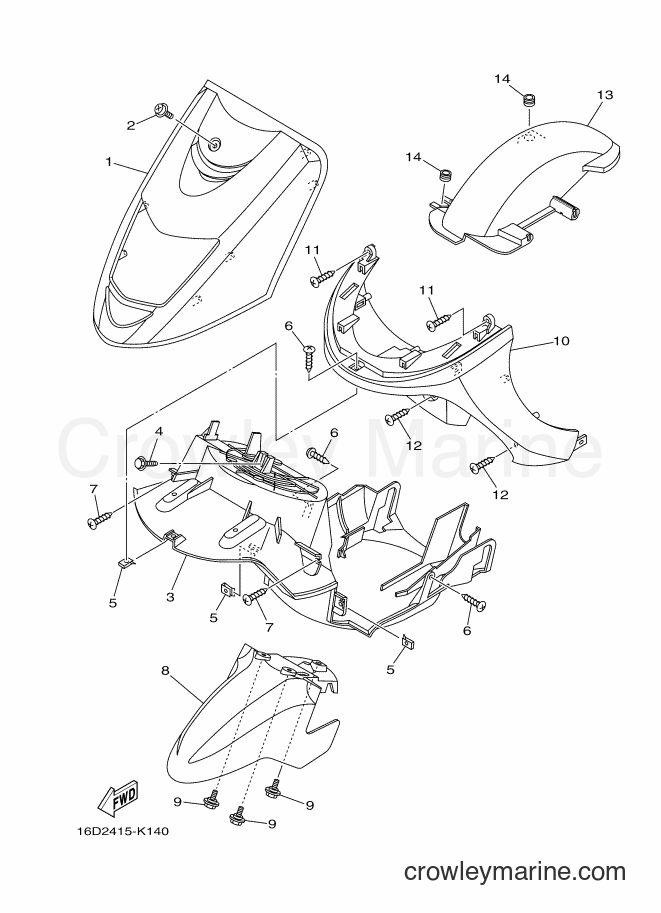

2012 Scooter XC100E - XC100E (1RS1) [010] FENDER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors XC100E (1RS1) [010] - FENDER
Change View:
1
Required: 1
FENDER, OVER
Price unavailable
Screw With Washer
2
Yamaha Motors
Screw With Washer90159-06812-00
Required: 1
SCREW, WITH WASHER
Supersedes: 90159-06811-00
Cross Ship
Leaves in 2-5 days
$2.25
$1.91
You save $0.34
More details
3
Required: 1
FENDER, INNER
Price unavailable
4
Required: 1
BOLT, WITH WASHER
Price unavailable
5
Required: 3
NUT, SPRING
Price unavailable
Truss Screw
6
Yamaha Motors
Truss Screw97707-50012-00
Required: 3
SCREW, TAPPING
Supersedes: 97702-50012-00
Cross Ship
Leaves in 2-5 days
$4.63
$3.94
You save $0.69
More details
Tapping Screw
7
Yamaha Motors
Tapping Screw97702-50016-00
Required: 2
SCREW, TAPPING
Cross Ship
Leaves in 2-5 days
$2.60
$2.21
You save $0.39
More details
8
Required: 1
FENDER, FRONT
Price unavailable
9
Required: 3
BOLT
Price unavailable
10
Required: 1
MOLE, FENDER
Price unavailable
Tapping Screw
11
Yamaha Motors
Tapping Screw97702-50016-00
Required: 2
SCREW, TAPPING
Cross Ship
Leaves in 2-5 days
$2.60
$2.21
You save $0.39
More details
Truss Screw
12
Yamaha Motors
Truss Screw97707-50012-00
Required: 2
SCREW, TAPPING
Supersedes: 97702-50012-00
Cross Ship
Leaves in 2-5 days
$4.63
$3.94
You save $0.69
More details
13
Required: 1
FENDER, REAR
Price unavailable
14
Required: 2
GROMMET
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
