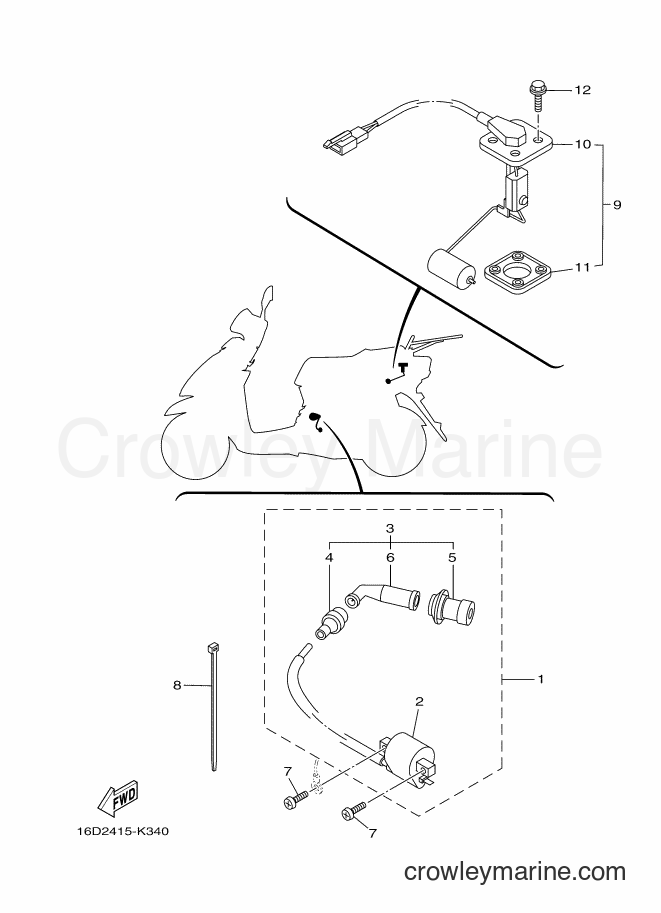

2012 Scooter XC100E - XC100E (1RS1) [010] ELECTRICAL 2 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors XC100E (1RS1) [010] - ELECTRICAL 2
Change View:
1
Required: 1
IGN. COIL ASSY.
Price unavailable
2
Required: 1
. IGNITION COIL ASSY
Price unavailable
3
Required: 1
. PLUG CAP ASSY
Price unavailable
4
Required: 1
. . CAP, PLUG
Price unavailable
5
Required: 1
. . SEAL, PLUG CAP
Price unavailable
6
Required: 1
. . SEAL, HIGH TENSION CORD
Price unavailable
7
Required: 2
SCREW, PAN HEAD
Price unavailable
Band
8
Yamaha Motors
Band1UA-82591-00-00
Required: 1
CLAMP
Supersedes: 90465-13152-00
Cross Ship
Leaves in 2-5 days
$5.49
$4.67
You save $0.82
More details
9
Required: 1
SENDER UNIT ASSY
Price unavailable
10
Required: 1
. SENDER UNIT ASSY, FUEL METER
Price unavailable
11
Required: 1
. GASKET, SENDER UNIT
Price unavailable
12
Required: 4
BOLT, WITH WASHER
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
