All diagrams for this model

2012 Scooter XC100E - XC100E (1RS1) [010] ELECTRICAL 1 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

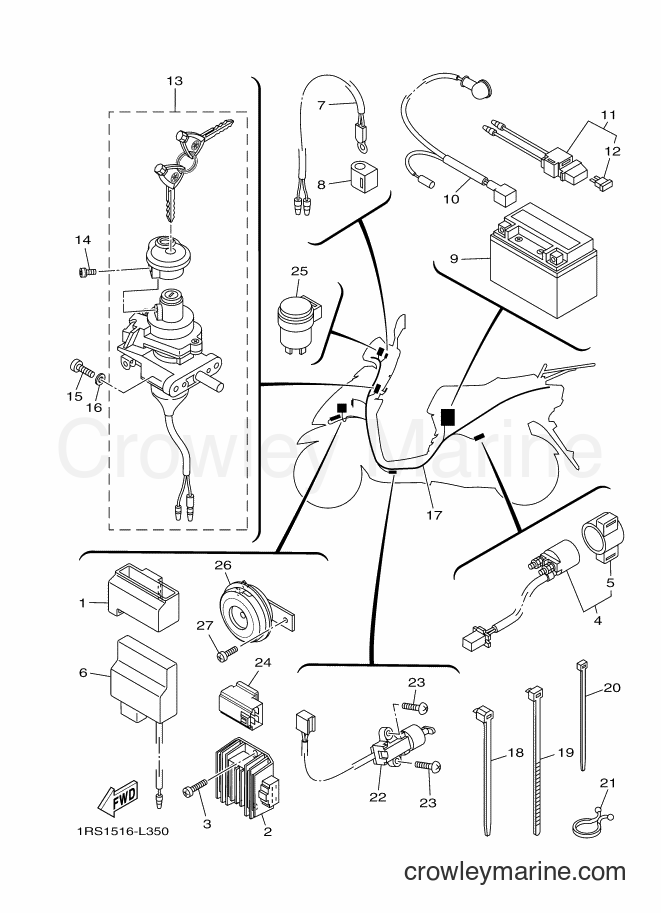

Yamaha Motors XC100E (1RS1) [010] - ELECTRICAL 1
Change View:
1
Required: 1
BAND
Price unavailable
2
Required: 1
RECTIFIER & REGULATOR ASSY
Price unavailable
Screw
3
Yamaha Motors
Screw98517-06012-00
Required: 2
SCREW, PAN HEAD
Supersedes: 98502-06012-00
Cross Ship
Leaves in 2-5 days
$4.10
$3.49
You save $0.62
More details
4
Required: 1
STARTER RELAY ASSY
Price unavailable
5
Required: 1
. HOLDER, RELAY
Price unavailable
6
Required: 1
C.D.I. UNIT ASSY
Price unavailable
7
Required: 1
THERMISTOR ASSY
Price unavailable
8
Required: 1
BAND
Price unavailable
9
Required: 1
BATTERY ASSY (YTX7A-BS)
Price unavailable
10
Required: 1
WIRE, PLUS LEAD
Price unavailable
11
Required: 1
FUSE BOX ASSY
Price unavailable
12
Required: 1
. FUSE (15A-BL)
Price unavailable
13
Required: 1
MAIN SWITCH ASSY
Price unavailable
14
Required: 1
SCREW, PAN HEAD WITH WASHER
Price unavailable
15
Required: 2
SCREW
Price unavailable
Plate Washer
16
Yamaha Motors
Plate Washer90201-07076-00
Required: 2
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
17
Required: 1
WIRE HARNESS ASSY
Price unavailable
Clamp
18
Yamaha Motors
Clamp90464-12812-00
Required: 5
CLAMP
Cross Ship
Leaves in 2-5 days
$1.00
$0.85
You save $0.15
More details
19
Required: 1
CLAMP
Price unavailable
Band
20
Yamaha Motors
Band1UA-82591-00-00
Required: 2
CLAMP
Supersedes: 90465-13152-00
Cross Ship
Leaves in 2-5 days
$5.49
$4.67
You save $0.82
More details
Clamp
21
Yamaha Motors
Clamp90464-23811-00
Required: 1
CLAMP
Cross Ship
Leaves in 2-5 days
$0.35
$0.30
You save $0.05
More details
22
Required: 1
SWITCH, SIDE STAND
Price unavailable
23
Required: 2
SCREW, PAN HEAD
Price unavailable
Starter Relay
24
Yamaha Motors
Starter Relay4HC-81950-00-00
Required: 1
RELAY ASSY
Cross Ship
Leaves in 2-5 days
$49.99
$42.49
You save $7.50
More details
25
Required: 1
FLASHER RELAY ASSY
Price unavailable
26
Required: 1
HORN
Price unavailable
27
Required: 1
SCREW, PAN HEAD
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
