All diagrams for this model

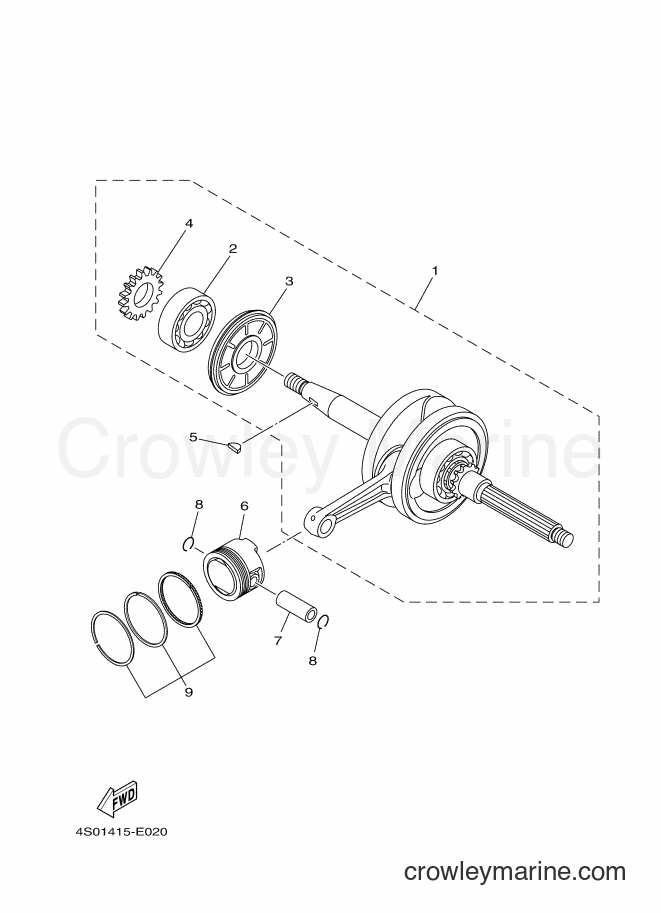

2012 Scooter XC100E - XC100E (1RS1) [010] CRANKSHAFT & PISTON diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors XC100E (1RS1) [010] - CRANKSHAFT & PISTON
Change View:
1
Required: 1
CRANKSHAFT ASSY
Price unavailable
2
Required: 1
. BEARING
Price unavailable
3
Required: 1
. FILTER,ROTARY
Price unavailable
4
Required: 1
. GEAR, PUMP DRIVE
Price unavailable
Woodruff Key
5
Yamaha Motors
Woodruff Key90280-03017-00
Required: 1
KEY, WOODRUFF
Supersedes: 90280-03045-00
Cross Ship
Leaves in 2-5 days
$8.49
$6.79
You save $1.70
More details
6
Required: 1
PISTON (STD)
Price unavailable
7
Required: 1
PIN, PISTON
Price unavailable
8
Required: 2
CIRCLIP
Price unavailable
9
Required: 1
PISTON RING SET (STD)
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
