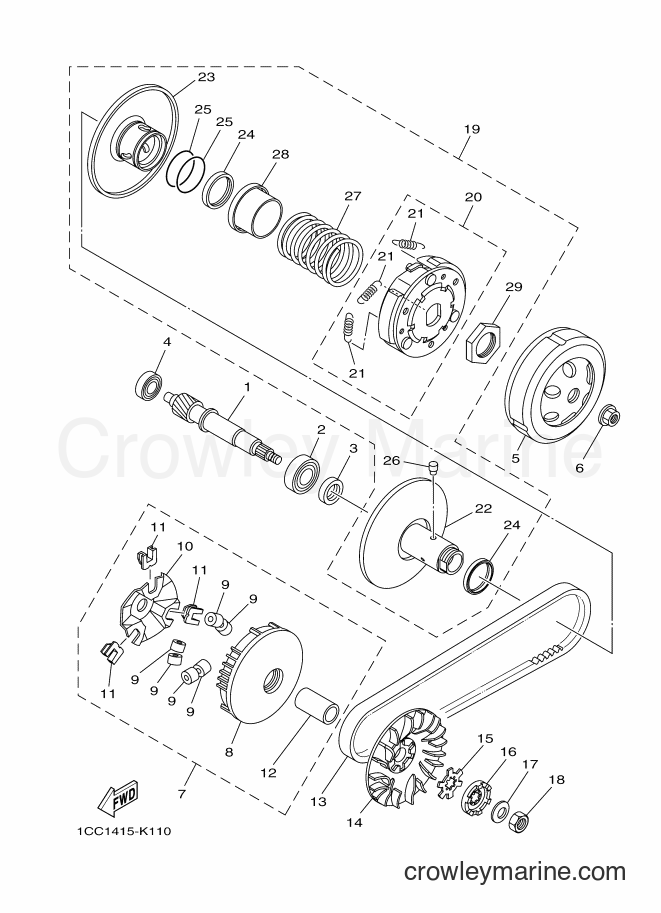

2012 Scooter XC100E - XC100E (1RS1) [010] CLUTCH diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors XC100E (1RS1) [010] - CLUTCH
Change View:
1
Required: 1
GEAR, PRIMARY DRIVE
Price unavailable
2
Required: 1
BEARING
Price unavailable
3
Required: 1
OIL SEAL
Price unavailable
4
Required: 1
BEARING
Price unavailable
5
Required: 1
CLUTCH HOUSING COMP.
Price unavailable
6
Required: 1
NUT
Price unavailable
7
Required: 1
PRIMARY SHEAVE ASSY
Price unavailable
8
Required: 1
. PRIMARY SLIDING SHEAVE COMP.
Price unavailable
9
Required: 6
. WEIGHT
Price unavailable
10
Required: 1
. CAM
Price unavailable
11
Required: 3
. SLIDER
Price unavailable
12
Required: 1
. COLLAR
Price unavailable
13
Required: 1
V-BELT
Price unavailable
14
Required: 1
SHEAVE, PRIMARY FIXED
Price unavailable
15
Required: 1
WASHER, CLAW
Price unavailable
16
Required: 1
CLUTCH, ONEWAY
Price unavailable
Conical Spring Washer
17
Yamaha Motors
Conical Spring Washer90208-12050-00
Required: 1
WASHER, CONICAL SPRING
Cross Ship
Leaves in 2-5 days
$12.49
$10.62
You save $1.87
More details
Nut
18
Yamaha Motors
Nut95317-12700-00
Required: 1
NUT
Supersedes: 95302-12700-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
19
Required: 1
SECONDARY SHEAVE ASSY
Price unavailable
19
Required: 1
SECONDARY SHEAVE ASSY
Price unavailable
20
Required: 1
. CLUTCH CARRIER ASSY
Price unavailable
20
Required: 1
. CLUTCH CARRIER ASSY
Price unavailable
21
Required: 3
. . SPRING, CLUTCH WEIGHT 1
Price unavailable
21
Required: 1
. . SPRING, CLUTCH WEIGHT 1
Price unavailable
22
Required: 1
. SECONDARY FIXED SHEAVE COMP.
Price unavailable
23
Required: 1
. SECONDARY SLIDING SHEAVE
Price unavailable
24
Required: 2
. OIL SEAL
Price unavailable
25
Required: 2
. O-RING
Price unavailable
26
Required: 2
. PIN, GUIDE
Price unavailable
27
Required: 1
. SPRING, COMPRESSION
Price unavailable
28
Required: 1
. SEAT, SECONDARY SPRING
Price unavailable
29
Required: 1
. NUT
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
