All diagrams for this model

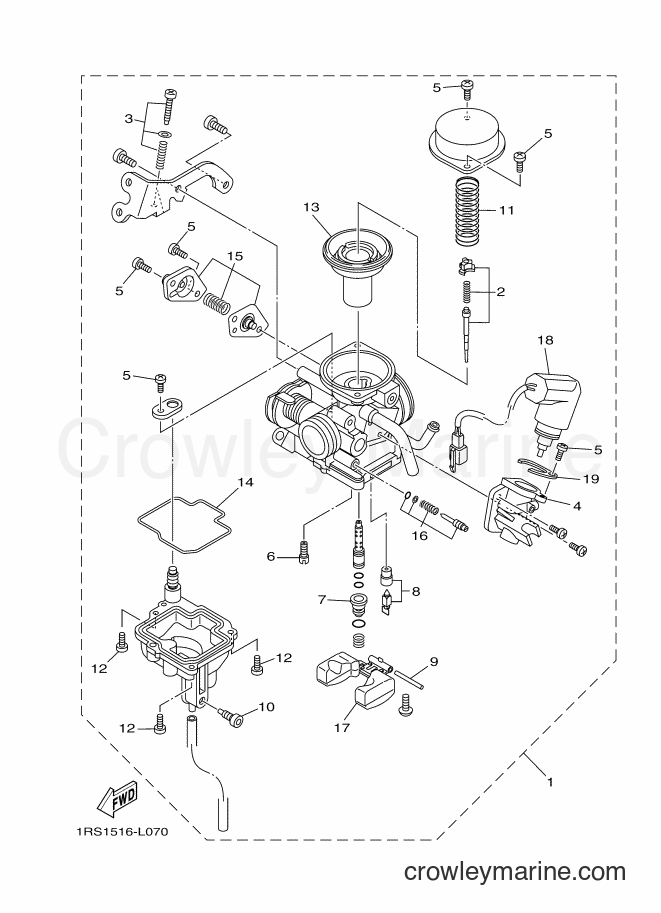

2012 Scooter XC100E - XC100E (1RS1) [010] CARBURETOR diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors XC100E (1RS1) [010] - CARBURETOR
Change View:
1
Required: 1
CARBURETOR ASSY 1
Price unavailable
2
Required: 1
. NEEDLE SET
Price unavailable
3
Required: 1
. STOP SCREW SET
Price unavailable
4
Required: 1
. COVER, CARBURETOR 1
Price unavailable
Screw
5
Yamaha Motors
Screw98580-04008-00
Required: 6
. SCREW, PAN HEAD
Supersedes: 98501-04008-00
Cross Ship
Leaves in 2-5 days
$6.49
$5.52
You save $0.97
More details
6
Required: 1
. JET, PILOT (# 32)
Price unavailable
7
Required: 1
. JET, MAIN (#104)
Price unavailable
8
Required: 1
. NEEDLE VALVE ASSY
Price unavailable
Float Pin
9
Yamaha Motors
Float Pin5LB-E4386-00-00
Required: 1
. PIN, FLOAT
Cross Ship
Leaves in 2-5 days
$3.70
$3.15
You save $0.56
More details
10
Required: 1
. PLUG, SCREW
Price unavailable
11
Required: 1
. SPRING
Price unavailable
12
Required: 3
. SCREW, PAN HEAD WITH WASHER
Price unavailable
13
Required: 1
. VALVE ASSY
Price unavailable
14
Required: 1
. GASKET, FLOAT CHAMBER
Price unavailable
15
Required: 1
. DIAPHRAGM SET 1
Price unavailable
16
Required: 1
. PILOT SCREW SET
Price unavailable
17
Required: 1
. FLOAT
Price unavailable
18
Required: 1
. PLUNGER STARTER ASSY
Price unavailable
19
Required: 1
. PLATE
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
