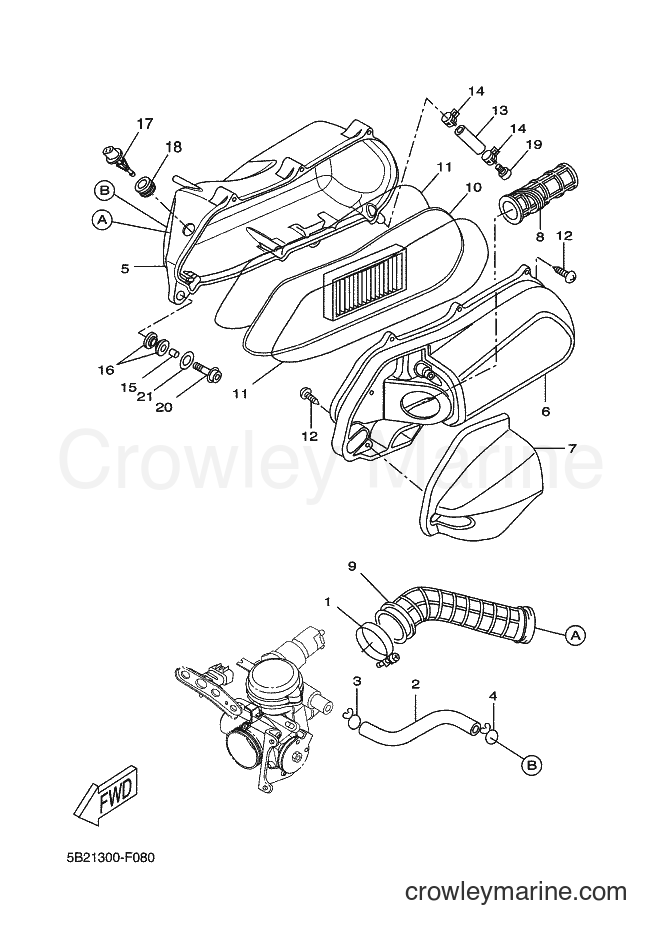

2012 Scooter VP250 - VP250 (5B29) [010] INTAKE diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors VP250 (5B29) [010] - INTAKE
Change View:
Hose Clamp Assembly
1
Yamaha Motors
Hose Clamp Assembly90450-52007-00
Required: 1
HOSE CLAMP ASSY
Cross Ship
Leaves in 2-5 days
$12.49
$10.62
You save $1.87
More details
2
Required: 1
HOSE, AIR 2
Price unavailable
Clip
3
Yamaha Motors
Clip90467-20M15-00
Required: 1
CLIP
Supersedes: 90467-20030-00
Cross Ship
Leaves in 2-5 days
$6.75
$5.74
You save $1.01
More details
Clip
4
Yamaha Motors
Clip90467-18196-00
Required: 1
CLIP
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
5
Required: 1
CASE, AIR CLEANER 1
Price unavailable
6
Required: 1
CAP, CLEANER CASE 1
Price unavailable
7
Required: 1
COVER, CLEANER CASE 1
Price unavailable
8
Required: 1
DUCT
Price unavailable
9
Required: 1
JOINT, AIR CLEANER 1
Price unavailable
10
Required: 1
ELEMENT, AIR CLEANER
Price unavailable
11
Required: 2
SEAL
Price unavailable
Truss Screw
12
Yamaha Motors
Truss Screw97707-50525-00
Required: 9
SCREW, TAPPING
Supersedes: 97707-50125-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
13
Required: 2
HOSE
Price unavailable
14
Required: 4
CLIP
Price unavailable
15
Required: 2
COLLAR
Price unavailable
16
Required: 4
GROMMET
Price unavailable
Air Temperature Sensor
17
Yamaha Motors
Air Temperature Sensor5CA-85886-00-00
Required: 1
SENSOR, AIR TEMPRATURE
Cross Ship
Leaves in 2-5 days
$44.99
$38.24
You save $6.75
More details
GROMMET, WATER TUBE (UPPER)
18
Yamaha Motors
GROMMET, WATER TUBE (UPPER)5CA-14435-00-00
Required: 1
GROMMET
Cross Ship
Leaves in 2-5 days
$10.99
$9.34
You save $1.65
More details
19
Required: 2
COVER, DRAIN VALVE
Price unavailable
20
Required: 2
BOLT, HEXAGON SOCKET HEAD
Price unavailable
21
Required: 2
WASHER, PLATE
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
